Unit · AXIAL-PISTON PUMP
A A10V O 71EK2DS/32L-VSD19N00P -S3100R902484741
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71EK2DS/32L-VSD19N00P-S3100, material number R902484741. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with controller cut-off (load sensing) U = 24 V (EK2DS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 3100.
- Number
- R902484741
- Type code
- A A10V O 71EK2DS/32L-VSD19N00P -S3100
- Group
- A10VO 71
- Edition
- 06/2020

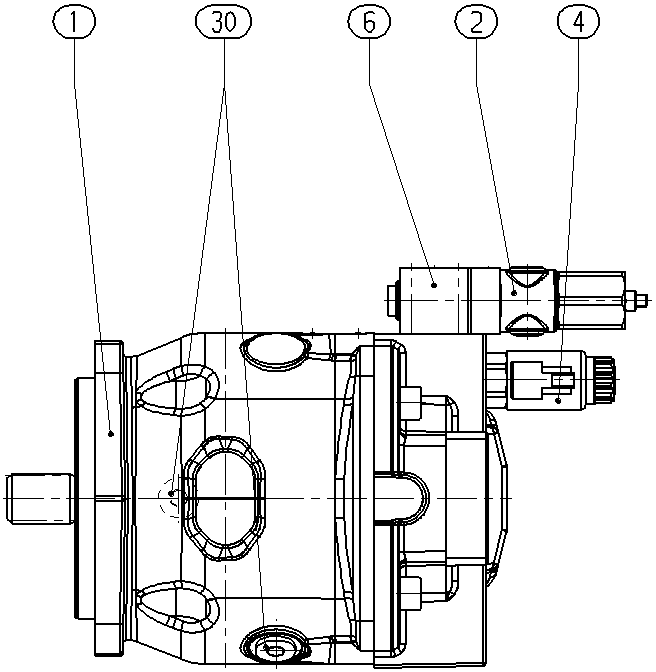

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484901 | BASE UNIT Assembly parts list →L | 1 | ||
| R902477972 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902450091 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902484237 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | pressure and flow control with controller cut-off (load sensing) U = 24 V | EK2DS |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
