Unit · AXIAL-PISTON PUMP
A A10VNO 28ED 72/53R-VTE12N00P -S3091R902484752
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO28ED72/53R-VTE12N00P-S3091, material number R902484752. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 3091.
- Number
- R902484752
- Type code
- A A10VNO 28ED 72/53R-VTE12N00P -S3091
- Group
- A10VNO 28
- Edition
- 06/2020

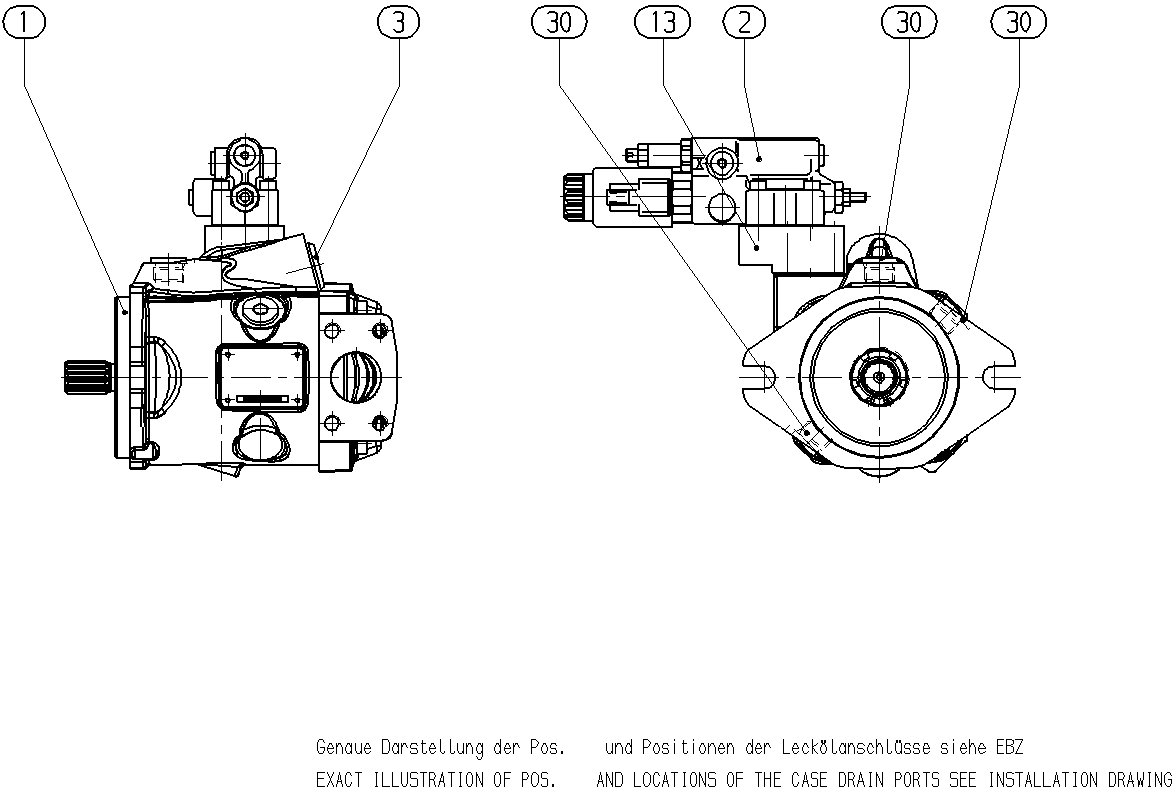

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479382 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533400 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902464277 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902561667 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910901969 | SCREW PLUG | 3 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Working port | according to ISO 6162 laterally opposite for through drive | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
