Unit · AXIAL-PISTON PUMP

A A10VSO 10 DFR1/52L-VUC14N00R902484843

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DFR1/52L-VUC14N00, material number R902484843. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged With flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 Reduced diameter (U). Mounting flange: based on ISO 3019-1 2-hole (C). Working port: threaded port, metric Rear (14). Through drive: without through drive (N00).

Number: R902484843
Type code: A A10VSO 10 DFR1/52L-VUC14N00
Group: A10VSO 10
Edition: 06/2020

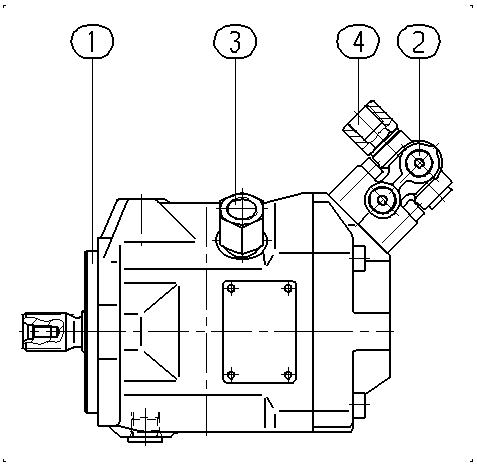

Pos.	Number	Name	Qty
	R902484800	BASE UNIT Assembly parts list →L	1
	R902450440	CONTROL VALVE Assembly parts list →L	1
	R910928022	ADAPTER Assembly parts list →L	1
	R902409426	ADAPTER Assembly parts list →L	1
70	R902602012	SEAL SCREW	1
71	R902602012	SEAL SCREW	1
72	R902602009	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10VS
Operating mode	Pump, open circuit	O
Control device	With flow controller X-T plugged With flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Splined shaft ISO 3019-1 Reduced diameter	U
Mounting flange	Based on ISO 3019-1 2-hole	C
Working port	Threaded port, metric Rear	14
Through drive	Without through drive	N00

Other versions 1

R902484842 AL A10VSO 10 DFR1/52L-VUC14N00
