Unit · AXIAL-PISTON PUMP
A A10V O140ED 72/32R-VSD62K68PR902484921
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140ED72/32R-VSD62K68P, material number R902484921. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: electric U = 24 V (ED72). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: top, bottom, opposite, fastening thread UNC (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Swivel angle sensor: with electric swivel angle sensor PAL SENT/SENT U = 5V DC (P).
- Number
- R902484921
- Type code
- A A10V O140ED 72/32R-VSD62K68P
- Group
- A10VO 140
- Edition
- 06/2020

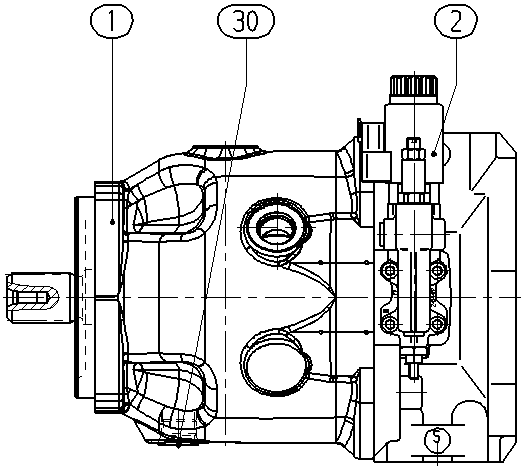

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484898 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967351 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Control devices | electric U = 24 V | ED72 |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
| Swivel angle sensor | With electric swivel angle sensor PAL SENT/SENT U = 5V DC | P |
