Unit · AXIAL-PISTON PUMP
AA10VZO140DFLR/31W-VPB12KB4-SO160R902484981
Axial piston pump Bosch Rexroth series A10FZO, type code AA10VZO140DFLR/31W-VPB12KB4-SO160, material number R902484981. Nominal size: NG 140. Axial piston unit: swashplate design, variable (A10V). Application area: variable-speed drives (Z). Operating mode: pump, open circuit (O). Sealing material 003: FKM (fluorocarbon rubber) (V). Connector for solenoids 003: without, with hydraulic controllers (0).
- Number
- R902484981
- Type code
- AA10VZO140DFLR/31W-VPB12KB4-SO160
- Group
- A10VZO 140
- Edition
- 06/2020

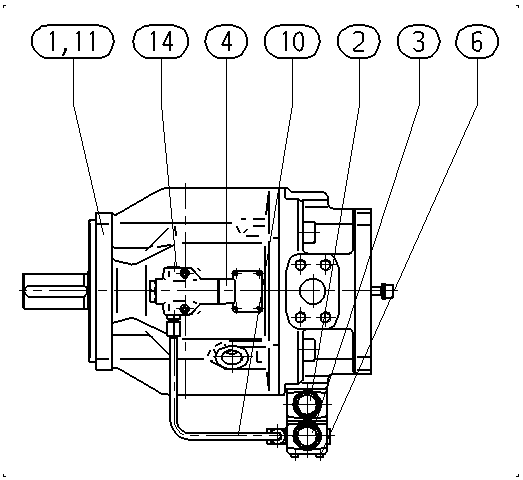

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484982 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910943450 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910964730 | PIPING Assembly parts list →L | 1 | ||
| R910921638 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A10V |
| Application area | Variable-speed drives | Z |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Sealing material 003 | FKM (fluorocarbon rubber) | V |
| Connector for solenoids 003 | Without, with hydraulic controllers | 0 |
