Unit · AXIAL-PISTON PUMP
AA10VZO45DRG/31W-VSA12N00-S3099R902484984
Axial piston pump Bosch Rexroth series A10FZO, type code AA10VZO45DRG/31W-VSA12N00-S3099, material number R902484984. Nominal size: NG 45. Application area: variable-speed drives (Z). Operating mode: pump, open circuit (O). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Through drive: without through drive (N00). Special version no. 3099.
- Number
- R902484984
- Type code
- AA10VZO45DRG/31W-VSA12N00-S3099
- Group
- A10VZO 45
- Edition
- 06/2020

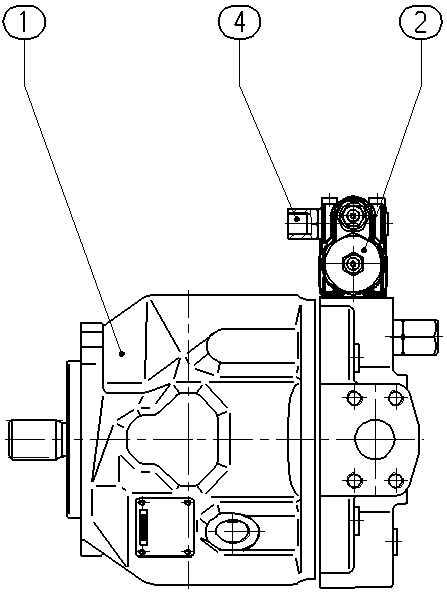

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902484985 | BASE UNIT Assembly parts list →L | 1 | ||
| R902483643 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Application area | Variable-speed drives | Z |
| Operating mode | Pump, open circuit | O |
| Size (NG) Geometric displacement | 45 | 45 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Through drive | without through drive | N00 |
