Unit · AXIAL-PISTON PUMP
AEAA10VSO 71 DRG /31R-PKC92H00 -SO620R902485198
Axial piston pump Bosch Rexroth series A10VSO, type code AEAA10VSO71DRG/31R-PKC92H00-SO620, material number R902485198. Nominal size: NG 71. Version: HFA, HFB, HFC hydraulic fluid (E). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Special version no. 620.
- Number
- R902485198
- Type code
- AEAA10VSO 71 DRG /31R-PKC92H00 -SO620
- Group
- A10VSO 71
- Edition
- 07/2020

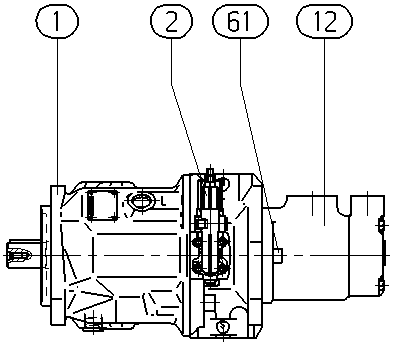

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902503178 | BASE UNIT Assembly parts list →L | 1 | ||
| R902490090 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R900939075 | VANE PUMP Assembly parts list →L | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
