Unit · AXIAL-PISTON PUMP
A A10VSO 71 DFR1/31R-VSA42K57 -SO119R902485395
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFR1/31R-VSA42K57-SO119, material number R902485395. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread (42). Through drive: for flange ISO 3019-2 Diameter, ⌀63, metric 4-hole Shaft key ⌀25 (K57). Special version no. 119.
- Number
- R902485395
- Type code
- A A10VSO 71 DFR1/31R-VSA42K57 -SO119
- Group
- A10VSO 71
- Edition
- 06/2020

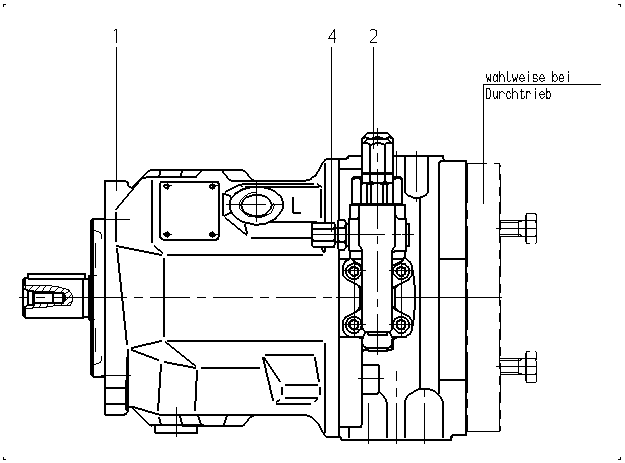

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485370 | BASE UNIT Assembly parts list →L | 1 | ||
| R902460431 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910908294 | THREADED FASTENER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread | 42 |
| Through drive | For flange ISO 3019-2 Diameter, ⌀63, metric 4-hole Shaft key ⌀25 | K57 |
