Unit · AXIAL-PISTON PUMP
P A4VSG 180 EO2 /30R-PPB10KB59NR902485409
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180EO2/30R-PPB10KB59N, material number R902485409. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 2-hole 1 1/4 in 14T 12/24DP (KB5). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R902485409
- Type code
- P A4VSG 180 EO2 /30R-PPB10KB59N
- Group
- A4VSG 180
- Edition
- 07/2020

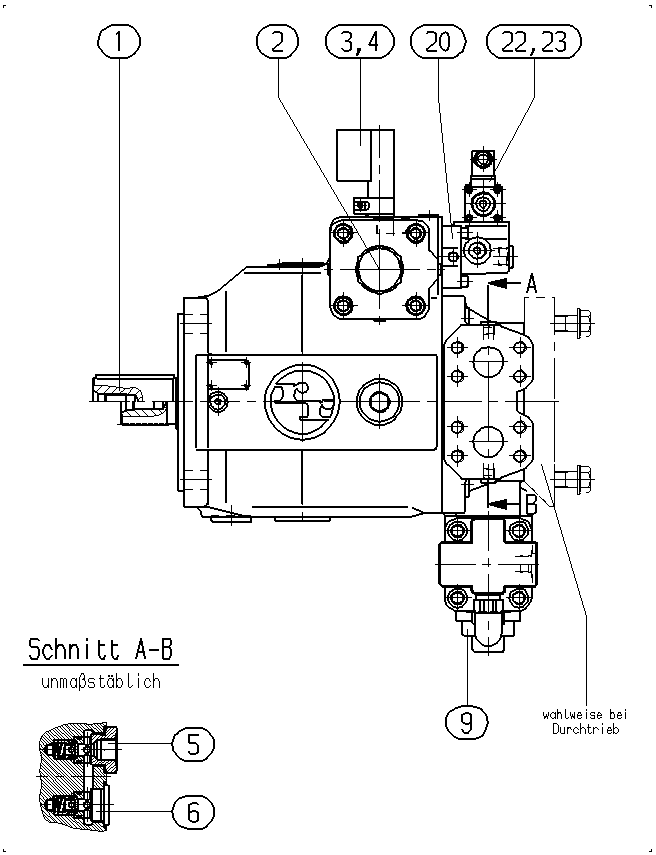

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485408 | BASE UNIT Assembly parts list →L | 1 | ||
| R902403755 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901152 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R910927508 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R910984189 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910991713 | VALVE MODULE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 125, 2-hole 1 1/4 in 14T 12/24DP | KB5 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
