Unit · AXIAL-PISTON PUMP
AA10VSO10DG/52W-VSA07K01-S'980392*EW*&R902485422
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DG/52W-VSA07K01-S'980392*EW*&, material number R902485422. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: two-point control, direct operated (DG). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R902485422
- Type code
- AA10VSO10DG/52W-VSA07K01-S'980392*EW*&
- Group
- A10VSO 10
- Edition
- 06/2020

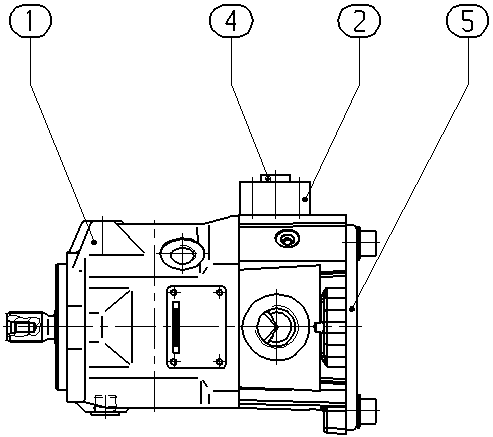

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485423 | BASE UNIT Assembly parts list →L | 1 | ||
| R910939070 | PLATE Assembly parts list →L | 1 | ||
| R913011609 | SCREW PLUG | 1 | ||
| R902469008 | SEALING COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | Two-point control, direct operated | DG |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
