Unit · AXIAL-PISTON PUMP
AA10VZO18FE1/31L-PPA12N00-S3121R902485425
Axial piston pump Bosch Rexroth series A10FZO, type code AA10VZO18FE1/31L-PPA12N00-S3121, material number R902485425. Nominal size: NG 18. Application area: variable-speed drives (Z). Operating mode: pump, open circuit (O). Through drive: without through drive (N00). Special version no. 3121.
- Number
- R902485425
- Type code
- AA10VZO18FE1/31L-PPA12N00-S3121
- Group
- A10VZO 18
- Edition
- 06/2020

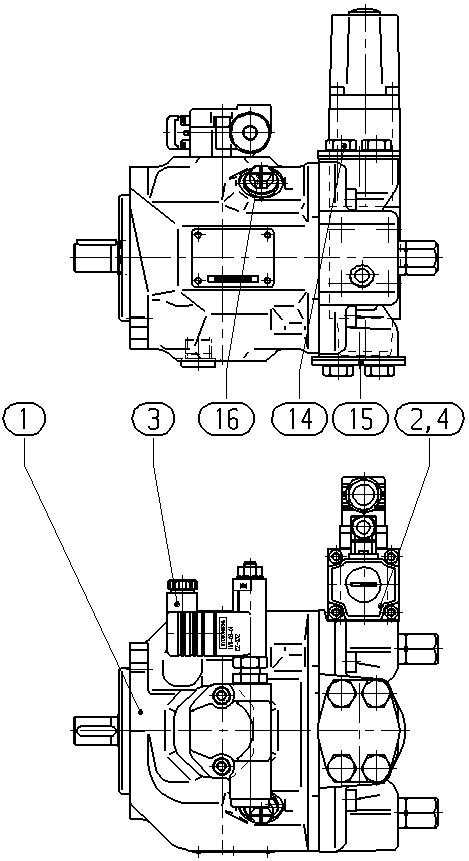

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485426 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 4 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902602009 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Application area | Variable-speed drives | Z |
| Operating mode | Pump, open circuit | O |
| Size (NG) Geometric displacement | 18 | 18 |
| Through drive | without through drive | N00 |
