Unit · AXIAL-PISTON PUMP
AL A10V O140ED 73/32L-VSD12K17P -SO200R902485475
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO140ED73/32L-VSD12K17P-SO200, material number R902485475. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP (K17). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Special version no. 200.
- Number
- R902485475
- Type code
- AL A10V O140ED 73/32L-VSD12K17P -SO200
- Group
- A10VO 140
- Edition
- 06/2020

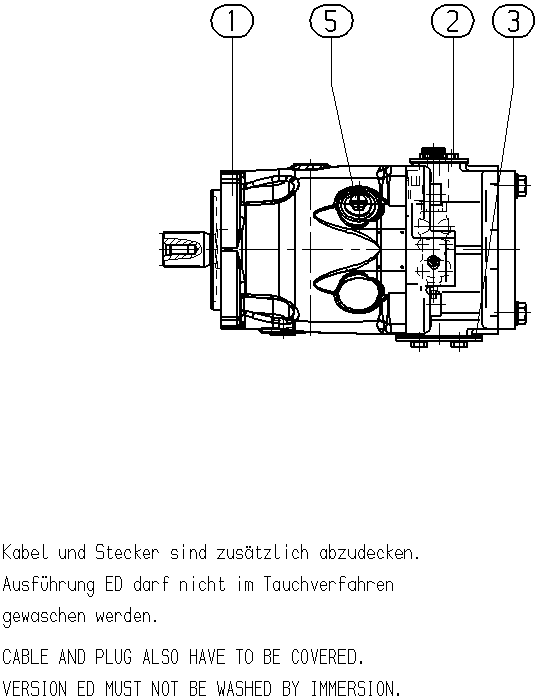

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485477 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP | K17 |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
