Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO140 DFLR/31R-VPB12O11R902485770
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFLR/31R-VPB12O11, material number R902485770. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).
- Number
- R902485770
- Type code
- A A10VSO140 DFLR/31R-VPB12O11
- Group
- A10VSO 140
- Edition
- 06/2020

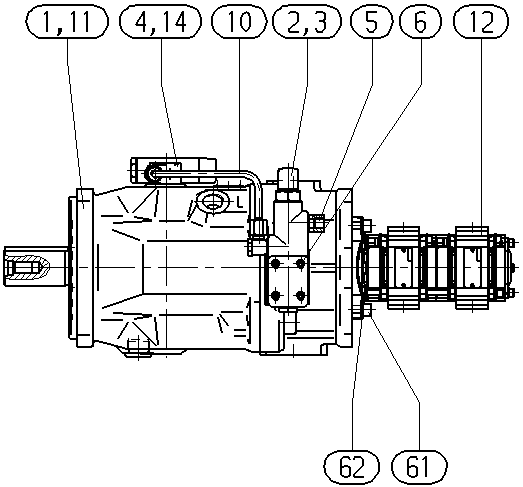

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902455496 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R910924992 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R910924990 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902533217 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R910984435 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | ŚRUBA Z ŁBEM WALCOWYM | 4 | ||
| R910964730 | ORUROWANIE Assembly parts list →L | 1 | ||
| R910921639 | SCHEMAT ZASILANIA | 1 | ||
| R900933139 | ZESPÓŁ POMPOWY | 1 | ||
| R910764647 | KOREK GWINTOWANY | 1 | ||
| R910109614 | ŚRUBA Z ŁBEM WALCOWYM | 2 | ||
| R902650189 | PODKŁADKA | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
