Unit · AXIAL-PISTON MOTOR
AL A6V M 500 HD3 /63W2-VZH150 AESO129R902485775
Axial piston motor Bosch Rexroth series A6VM, type code ALA6VM500HD3/63W2-VZH150AESO129, material number R902485775. Nominal size: NG 500. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 35 bar (HD3). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at side, opposite + at rear 15 (150). Beginning of control: at Vg min (standard for HA) (A). Special version no. 129.
- Number
- R902485775
- Type code
- AL A6V M 500 HD3 /63W2-VZH150 AESO129
- Group
- A6VM 500
- Edition
- 06/2020

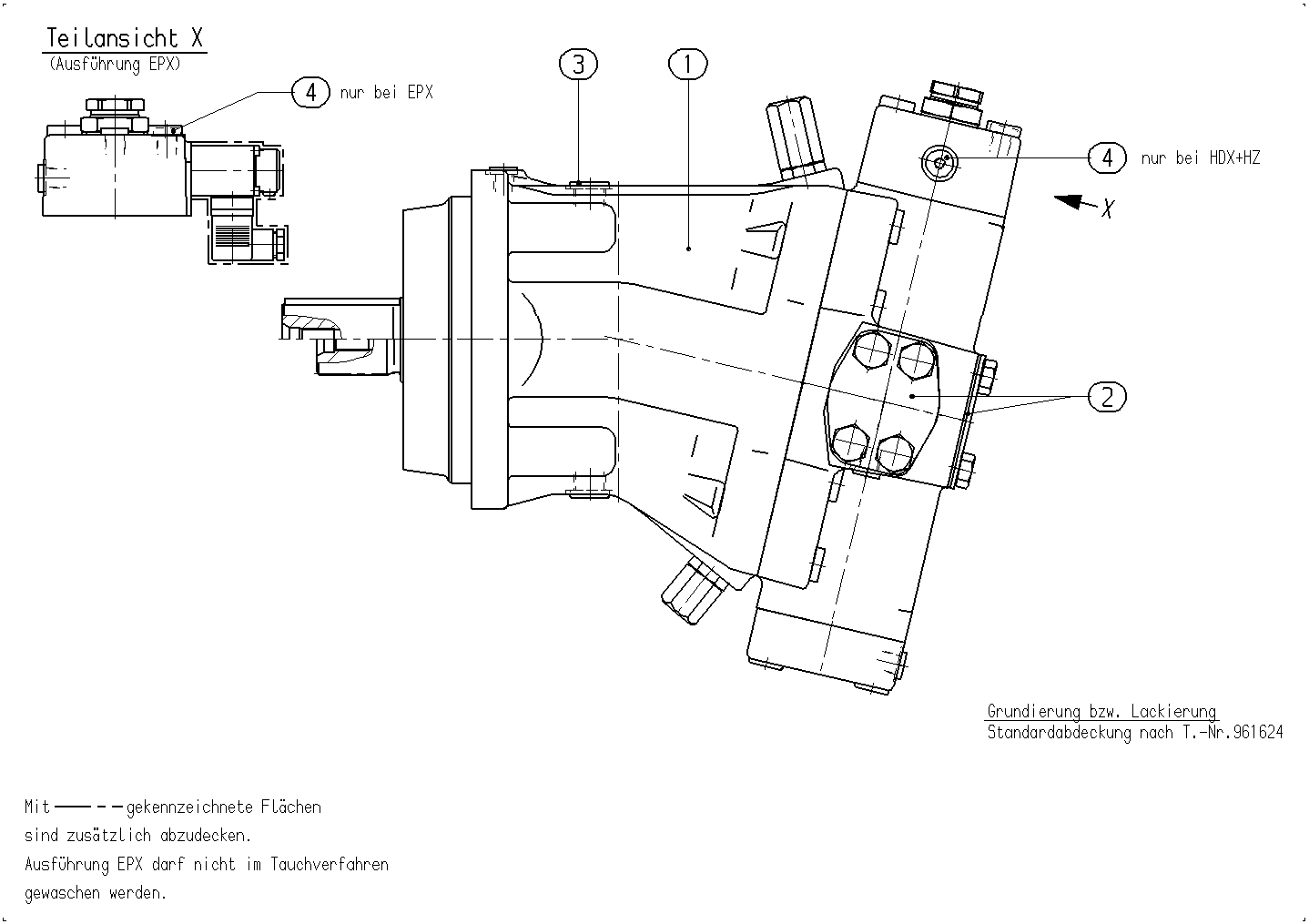

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902479067 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902400588 | FLANGE COVER | 4 | ||
| R902602013 | SEAL SCREW | 1 | ||
| R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 500 | 500 |
| Control device | Proportional control, hydraulic ΔpSt = 35 bar | HD3 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | 2 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at side, opposite + at rear 15 | 150 |
| Beginning of control | At Vg min (standard for HA) | A |
