Unit · AXIAL-PISTON PUMP

A A10V O 45EP2ER/53R-VSC62K04PR902485861

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45EP2ER/53R-VSC62K04P, material number R902485861. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).

Number
R902485861
Type code
A A10V O 45EP2ER/53R-VSC62K04P
Group
A10VO 45
Edition
06/2020

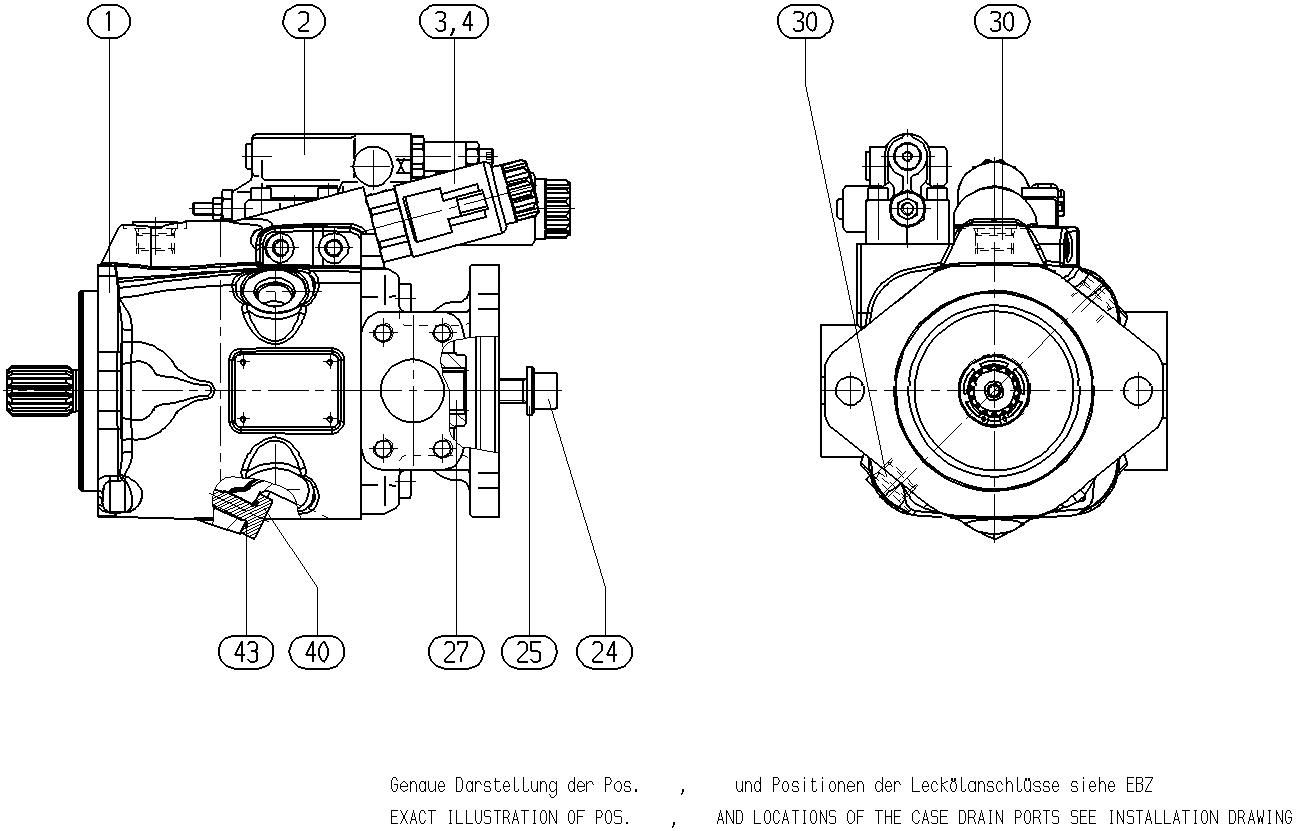

A A10V O 45EP2ER/53R-VSC62K04P — Drawing
Pos.NumberNameQtyAdd to inquiry
R902485853BASE UNIT Assembly parts list →L1
R902533211CONTROL VALVE Assembly parts list →L1
R902439082CONTROL VALVE Assembly parts list →L1
R902438539ADJUSTING PIECE Assembly parts list →L1
R902436103SPLINED COUPLING1
R910967343SCREW PLUG2
R902445111STOP SCREW1
R910804886O-RING1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite62
Through drive101-2 (B) 1 in 15T 16/32DPK04
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P
