Unit · AXIAL-PISTON PUMP
ALA10VM45EP1/53R-VCC16N002DP-S3262R902486600
Axial piston pump Bosch Rexroth series A10VM, type code ALA10VM45EP1/53R-VCC16N002DP-S3262, material number R902486600. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port according to A and B laterally, Threaded port, metric DIN 3852-1 same side (16N00). Connector for solenoids: DEUTSCH - molded connector, 2-pin – without suppressor diode (P). Special version no. 3262.
- Number
- R902486600
- Type code
- ALA10VM45EP1/53R-VCC16N002DP-S3262
- Group
- A10VM 45
- Edition
- 06/2020

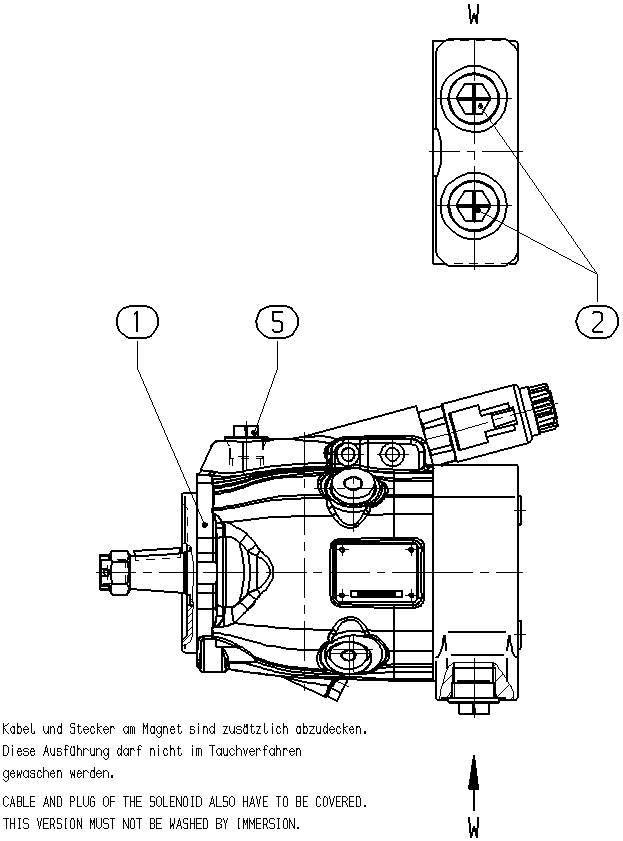

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902486064 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602012 | SEAL SCREW | 2 | ||
| R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Threaded port according to A and B laterally, Threaded port, metric DIN 3852-1 same side | 16N00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin – without suppressor diode | P |
