Unit · ROTARY GROUP
TWA4FO180M/30R-VZBK00R902486859
Rotary group Bosch Rexroth series A4FO, type code TWA4FO180M/30R-VZBK00, material number R902486859. Axial piston unit: swashplate design, fixed displacement (A4F). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019, 4-hole (B).
- Number
- R902486859
- Type code
- TWA4FO180M/30R-VZBK00
- Group
- A4FO 180
- Edition
- 07/2020

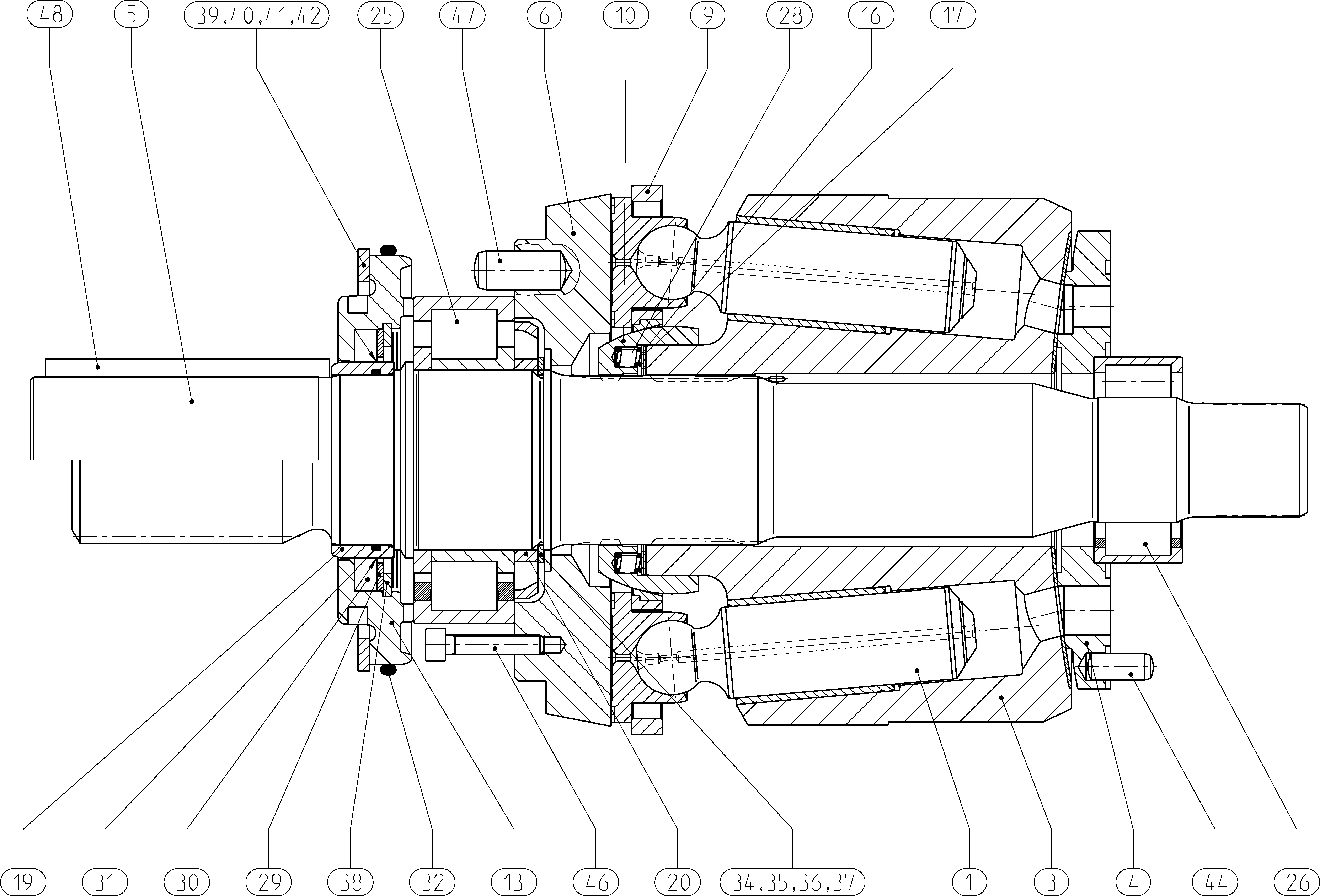

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902438137 | PISTON PAD | 9 | ||
| R910993755 | CYLINDER | 1 | ||
| R910934108 | DISTRIBUTOR PLATE | 1 | ||
| R902486526 | DRIVE SHAFT | 1 | ||
| R902473900 | CAM PLATE | 1 | ||
| R902439616 | RETAINING PLATE | 1 | ||
| R902439437 | RETAINING BALL | 1 | ||
| R910995239 | SEALING FLANGE | 1 | ||
| R902400546 | SHIM RING | 2 | ||
| R902400545 | SHIM RING | 2 | ||
| R910991526 | SEAL BUSHING | 1 | ||
| R910993938 | FEED WHEEL | 1 | ||
| R910960738 | CYL. ROLLER BEARING | 1 | ||
| R910928220 | CYL. ROLLER BEARING | 1 | ||
| R902400547 | COMPRESSION SPRING | 20 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910105848 | RETAINING RING | 1 | ||
| R910991777 | RETAINING RING | 1 | ||
| R910991778 | RETAINING RING | 1 | ||
| R910991779 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 | ||
| R910991668 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 5 | ||
| R910910938 | STRAIGHT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed displacement | A4F |
| Operating mode | Pump, open circuit | O |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft | R |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019, 4-hole | B |
