Unit · AXIAL-PISTON PUMP
P A4VSG 180 HS4 /30L-PZB10K049FR902486937
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180HS4/30L-PZB10K049F, material number R902486937. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 101-2 (B) 1 in 15T 16/32DP (K04). Valves: SDVB valve block mounted (9). Filtration: filter mounted in the boost circuit (F).
- Number
- R902486937
- Type code
- P A4VSG 180 HS4 /30L-PZB10K049F
- Group
- A4VSG 180
- Edition
- 07/2020

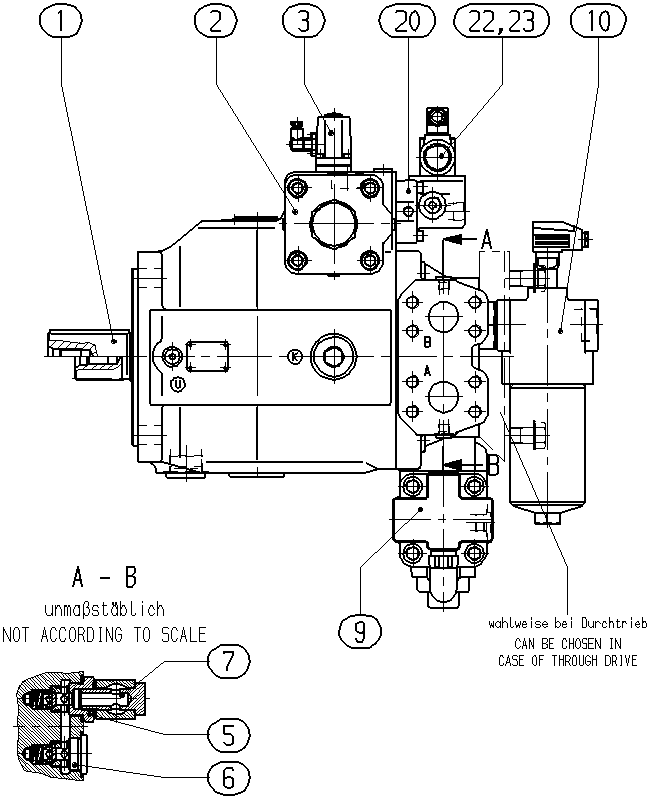

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902403794 | BASE UNIT Assembly parts list →L | 1 | ||
| R902403755 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422925 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910951234 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R910951358 | CONNECTING BLOCK Assembly parts list →L | 1 | ||
| R910927508 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R910964344 | FILTER Assembly parts list →L | 1 | ||
| R902413427 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902437398 | VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R909831380 | GUARD PLUG | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902602977 | FLANGE COVER | 1 | |
| 81 | R902602011 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Filter mounted in the boost circuit | F |
