Unit · AXIAL-PISTON PUMP
AL A10VWO 28 DR /52W-VSC11N00R902488233
Axial piston pump Bosch Rexroth series A10VWO, type code ALA10VWO28DR/52W-VSC11N00, material number R902488233. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft according to ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C).
- Number
- R902488233
- Type code
- AL A10VWO 28 DR /52W-VSC11N00
- Group
- A10VWO 28
- Edition
- 06/2020

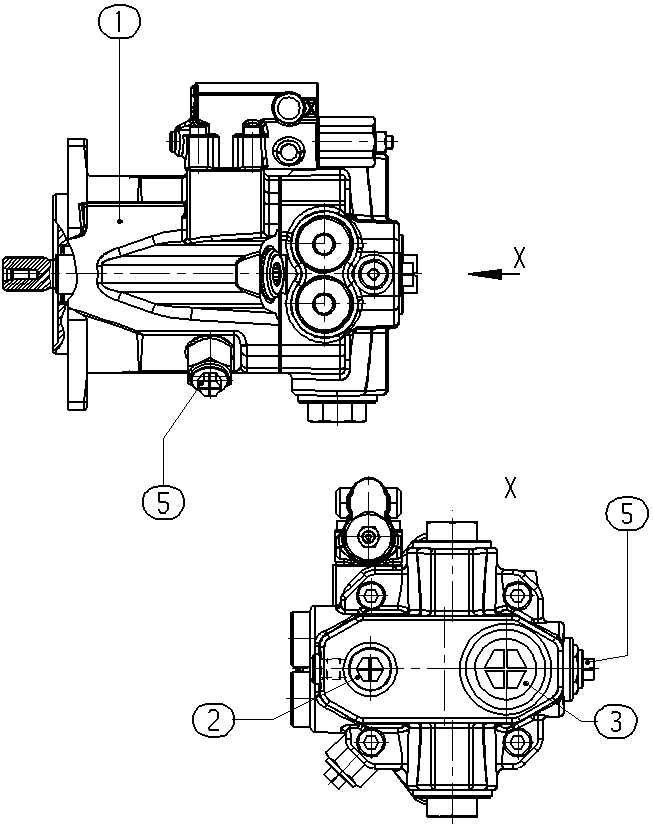

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902488202 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602011 | SEAL SCREW | 1 | ||
| R902602206 | SEAL SCREW | 1 | ||
| R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft according to ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
