Unit · AXIAL-PISTON MOTOR
A A6VLM 500 EP2D /63W2-PZH150F B-SO222R902488486
Axial piston motor Bosch Rexroth series A6VM, type code AA6VLM500EP2D/63W2-PZH150FB-SO222, material number R902488486. Nominal size: NG 500. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at side, opposite + at rear 15 (150). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 222.
- Number
- R902488486
- Type code
- A A6VLM 500 EP2D /63W2-PZH150F B-SO222
- Group
- A6VLM 500
- Edition
- 06/2020

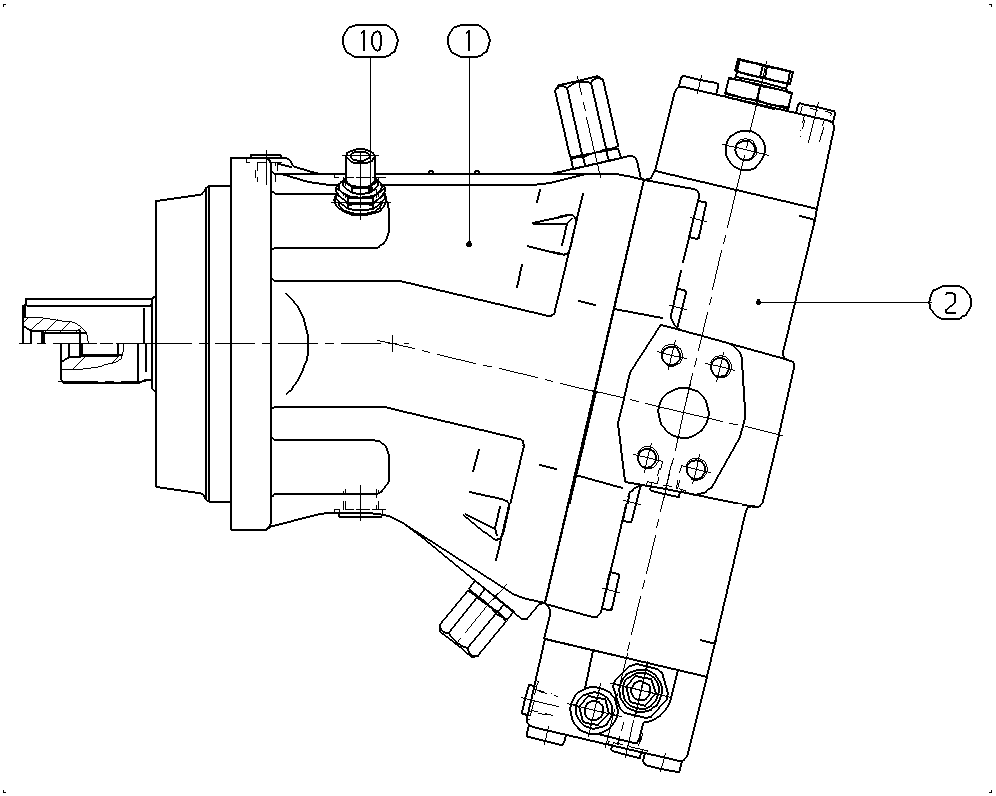

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902487098 | BASE UNIT Assembly parts list →L | 1 | ||
| R902487100 | CONTROL Assembly parts list →L | 1 | ||
| R902085681 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 500 | 500 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | 2 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at side, opposite + at rear 15 | 150 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
