Unit · AXIAL-PISTON PUMP
P A4VSG 180 HS4K /30R-PZB10K349NR902489615
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180HS4K/30R-PZB10K349N, material number R902489615. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 160, 4-hole 50×2×24×9g (K34). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R902489615
- Type code
- P A4VSG 180 HS4K /30R-PZB10K349N
- Group
- A4VSG 180
- Edition
- 07/2020

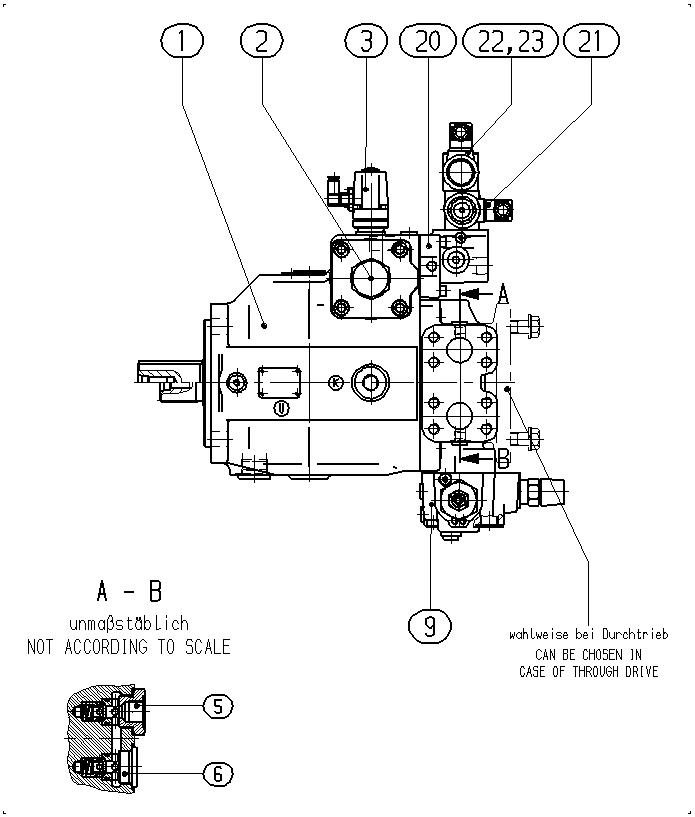

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902408367 | BASE UNIT Assembly parts list →L | 1 | ||
| R902403755 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422925 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R910927508 | VALVE BLOCK Assembly parts list →L | 1 | ||
| 11 | R902413176 | INTERMEDIATE PLATE Assembly parts list →L | 1 | |
| R910984173 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910995947 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902437398 | VALVE Assembly parts list →L | 1 | ||
| R910933745 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902430610 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 160, 4-hole 50×2×24×9g | K34 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
