Unit · AXIAL-PISTON MOTOR
A A6V M 250 HD3 /63W1-PZB027FVB-SO206R902489646
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250HD3/63W1-PZB027FVB-SO206, material number R902489646. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 35 bar (HD3). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Swivel angle sensor: optical swivel angle sensor (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 206.
- Number
- R902489646
- Type code
- A A6V M 250 HD3 /63W1-PZB027FVB-SO206
- Group
- A6VM 250
- Edition
- 06/2020

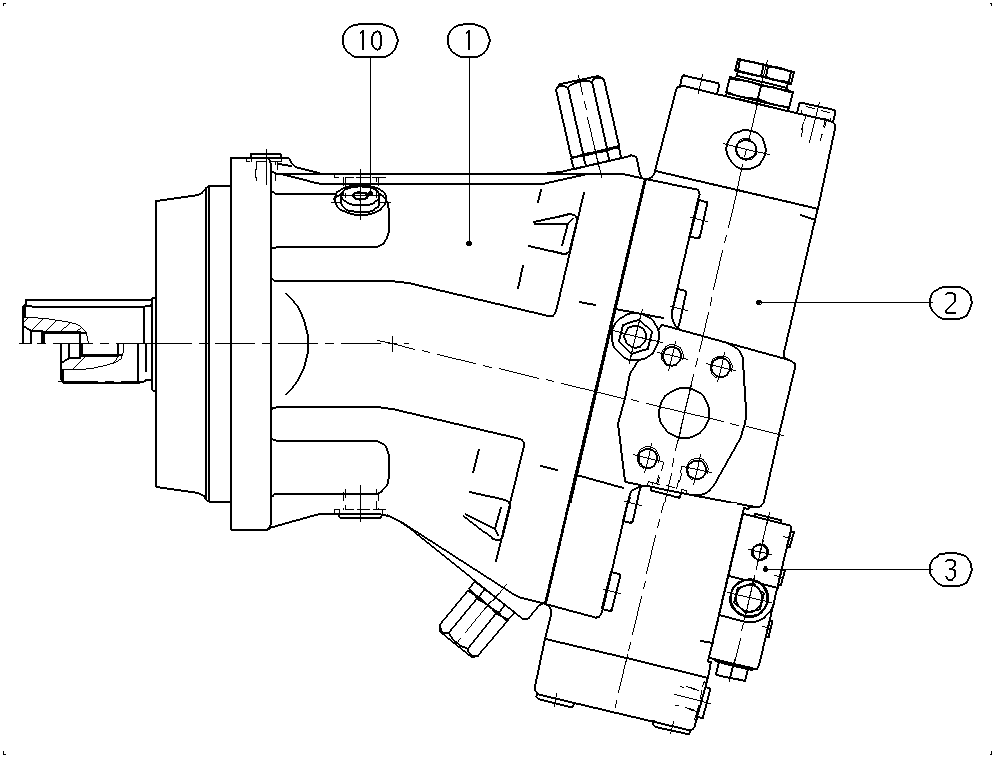

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902489647 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902489649 | CONTROL Assembly parts list →L | 1 | ||
| R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, hydraulic ΔpSt = 35 bar | HD3 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
