Unit · AXIAL-PISTON PUMP
A11VO280DRDGA00/40MR+GH4/080R+GF2/016RR902489904
Axial piston pump Bosch Rexroth series A11VO, type code A11VO280DRDGA00/40MR+GH4/080R+GF2/016R, material number R902489904. Nominal size: NG 280. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller (DR).
- Number
- R902489904
- Type code
- A11VO280DRDGA00/40MR+GH4/080R+GF2/016R
- Group
- A11VO 280
- Edition
- 06/2020

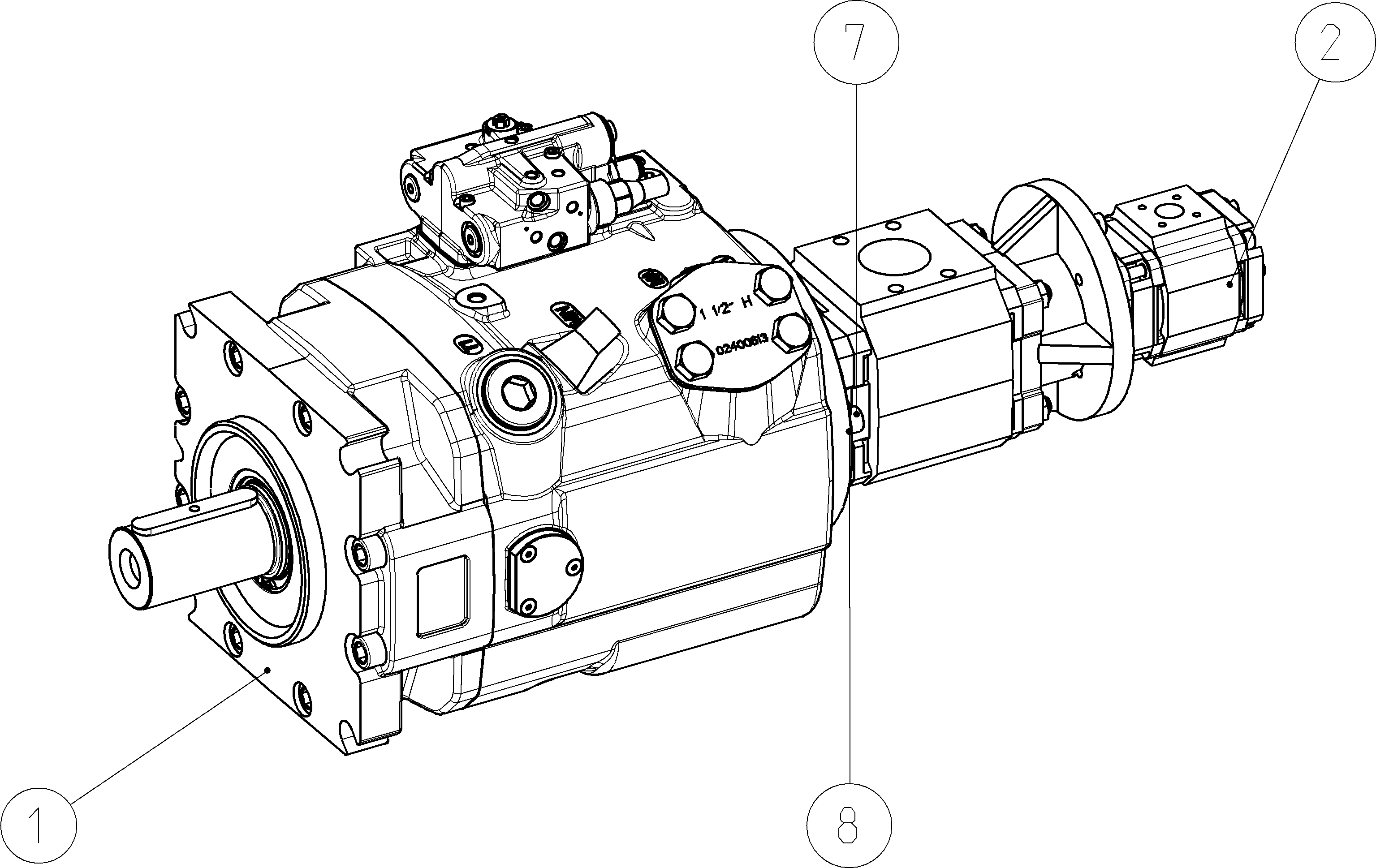

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902489902 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902602433 | INTERNAL GEAR PUMP | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 | ||
| R910186732 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 280 | 280 |
| Control device | Pressure controller | DR |
| Index | Size 40 … 130 | 0 |
