Unit · CONTROL
V A7V O 250 LRDH3/63R-V 02VR902490349
Control Bosch Rexroth series A7VO, type code VA7VO250LRDH3/63R-V02V, material number R902490349. Nominal size: NG 250.
- Number
- R902490349
- Type code
- V A7V O 250 LRDH3/63R-V 02V
- Group
- A7VO 250
- Edition
- 06/2020

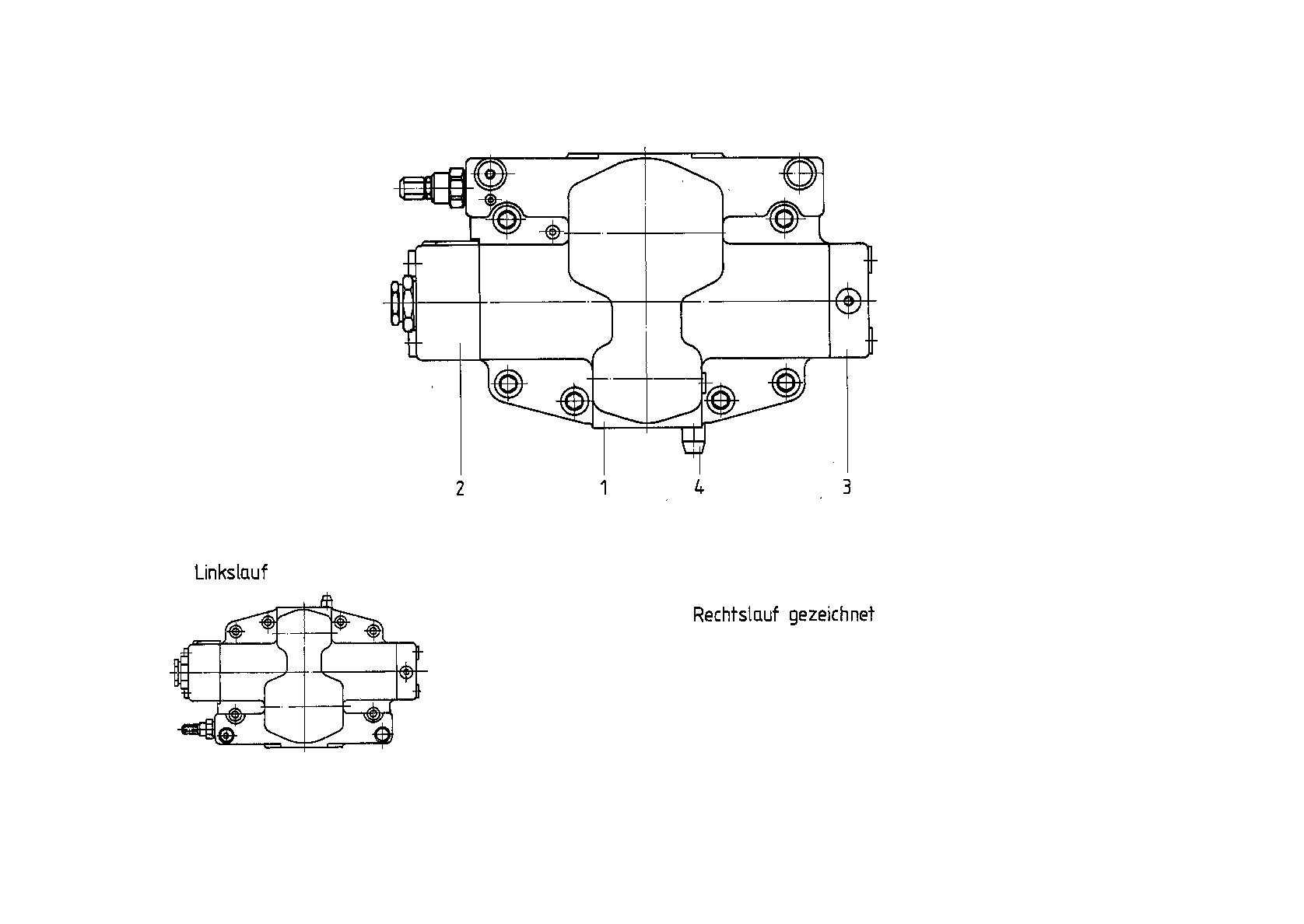

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910991234 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910999612 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910934709 | COVER Assembly parts list →L | 1 | |
| 4 | R910937965 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| with hydraulic stroke limiter initial position Vg max Δp = 35 bar | LRDH3 | |
| Series 6, Index 3 | 63 | |
| FKM (Fluoro-rubber) | V | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With optical swivel angle indicator | V |
