Unit · AXIAL-PISTON PUMP
PL A4VSG 500 HS4 /30R-PPH10K670N-S1816R902490397
Axial piston pump Bosch Rexroth series A4VSG, type code PLA4VSG500HS4/30R-PPH10K670N-S1816, material number R902490397. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Valves: without valve block (0). Filtration: without filter (N). Special version no. 1816.
- Number
- R902490397
- Type code
- PL A4VSG 500 HS4 /30R-PPH10K670N-S1816
- Group
- A4VSG 500
- Edition
- 07/2020

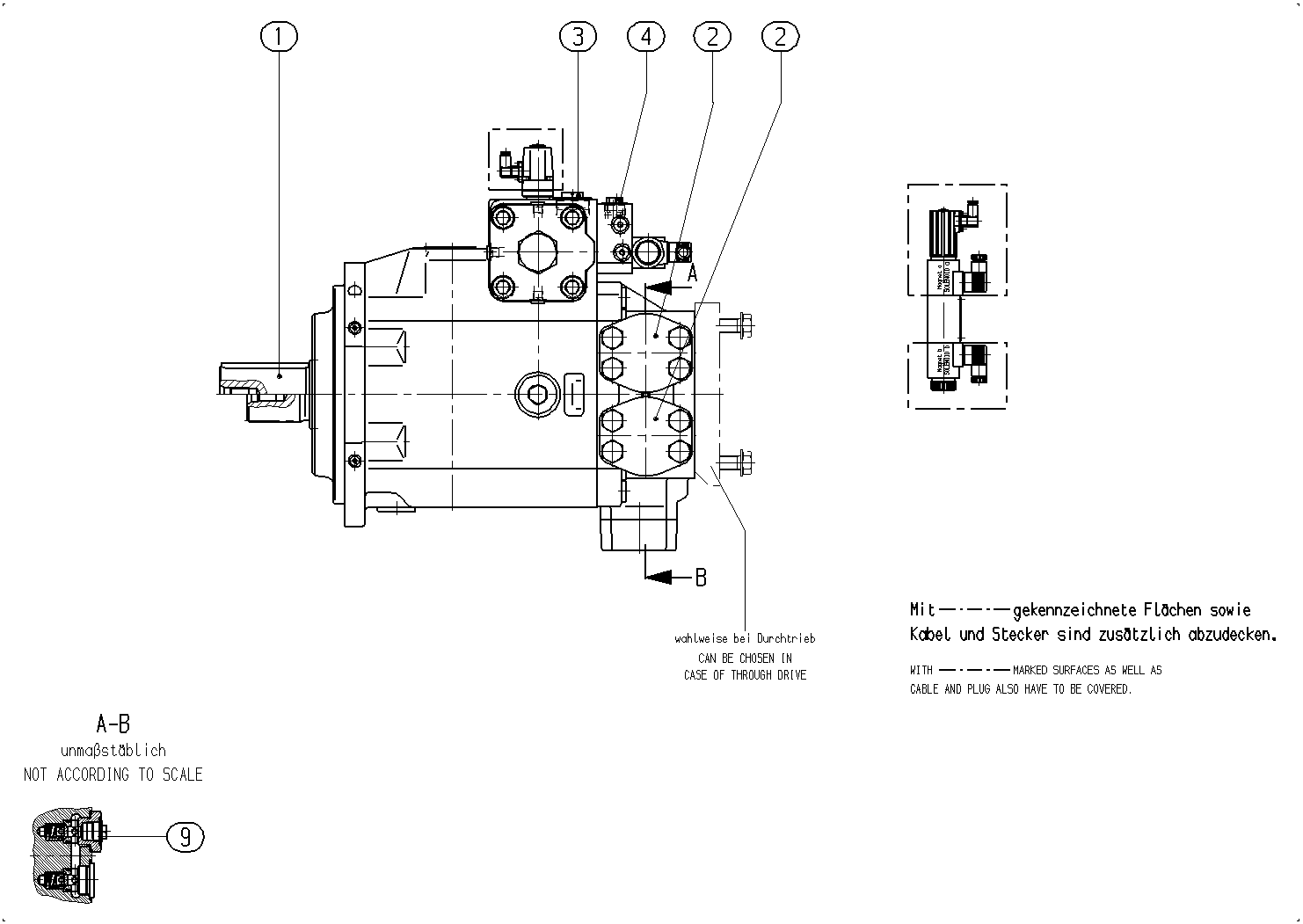

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902490395 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400592 | FLANGE COVER | 2 | ||
| R902650283 | SCREW PLUG | 1 | ||
| R909153365 | SCREW PLUG | 2 | ||
| R909153861 | SCREW PLUG | 1 | ||
| 10 | R910415375 | SEAL RING | 1 | |
| 11 | R902602977 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
