Unit · AXIAL-PISTON PUMP
P A4VSG 180 HS4 /30R-PZB10K070N -S1929R902490466
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180HS4/30R-PZB10K070N-S1929, material number R902490466. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Valves: without valve block (0). Filtration: without filter (N). Special version no. 1929.
- Number
- R902490466
- Type code
- P A4VSG 180 HS4 /30R-PZB10K070N -S1929
- Group
- A4VSG 180
- Edition
- 07/2020

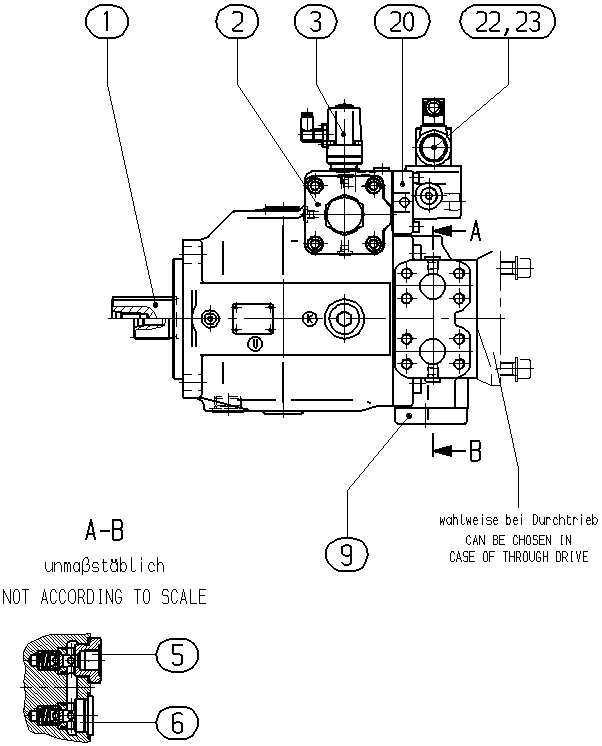

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902490461 | BASE UNIT Assembly parts list →L | 1 | ||
| R902403755 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422925 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910984173 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902437398 | VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902603192 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902557497 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
