Unit · CONTROL
V A4VSG 40 EPG /11L-V -S1386R902490603
Control Bosch Rexroth series A4VSG, type code VA4VSG40EPG/11L-V-S1386, material number R902490603. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S).
- Number
- R902490603
- Type code
- V A4VSG 40 EPG /11L-V -S1386
- Group
- A4VSG 40
- Edition
- 06/2020

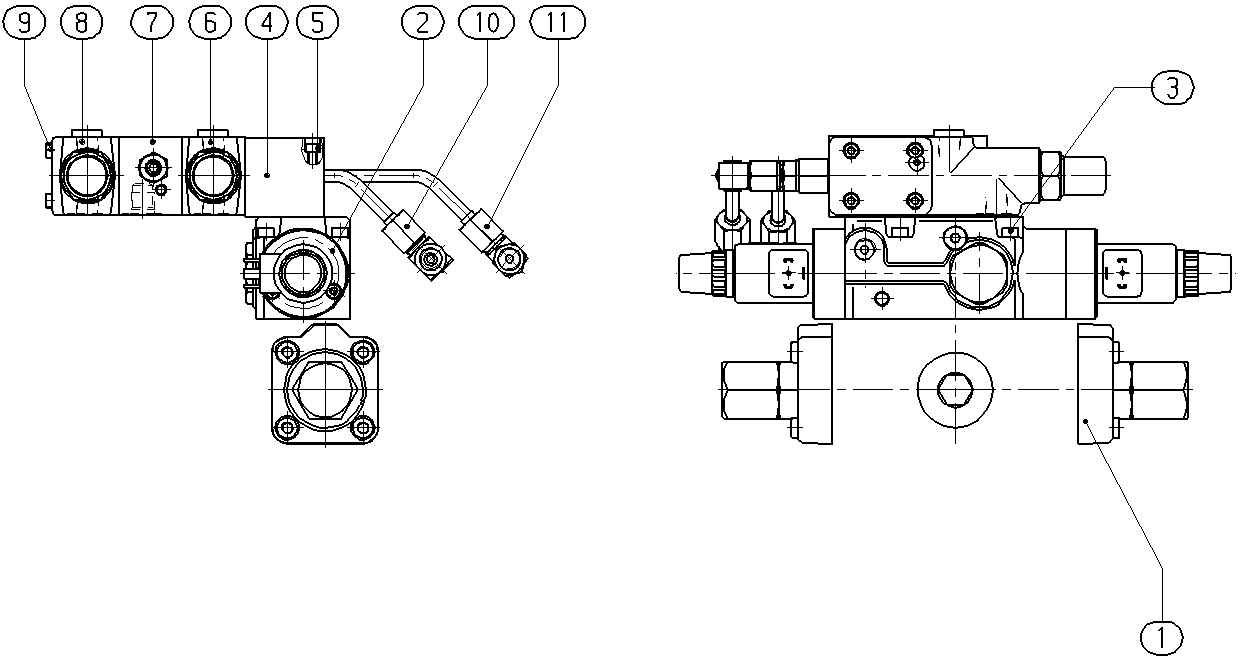

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902447791 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902447792 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R902418156 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902418070 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902418160 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910915346 | SOCKET HEAD CAP SCREW | 4 | ||
| R902490623 | PIPING Assembly parts list →L | 1 | ||
| R902490624 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 40 | 40 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
