Unit · BASE UNIT
G A10VWO 28 OV /52W-PSC11N00 -S3361R902490972
Base unit Bosch Rexroth series A10VWO, type code GA10VWO28OV/52W-PSC11N00-S3361, material number R902490972. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft bi-directional (W). Drive shaft: splined shaft standard shaft according to ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C).
- Number
- R902490972
- Type code
- G A10VWO 28 OV /52W-PSC11N00 -S3361
- Group
- A10VWO 28
- Edition
- 06/2020

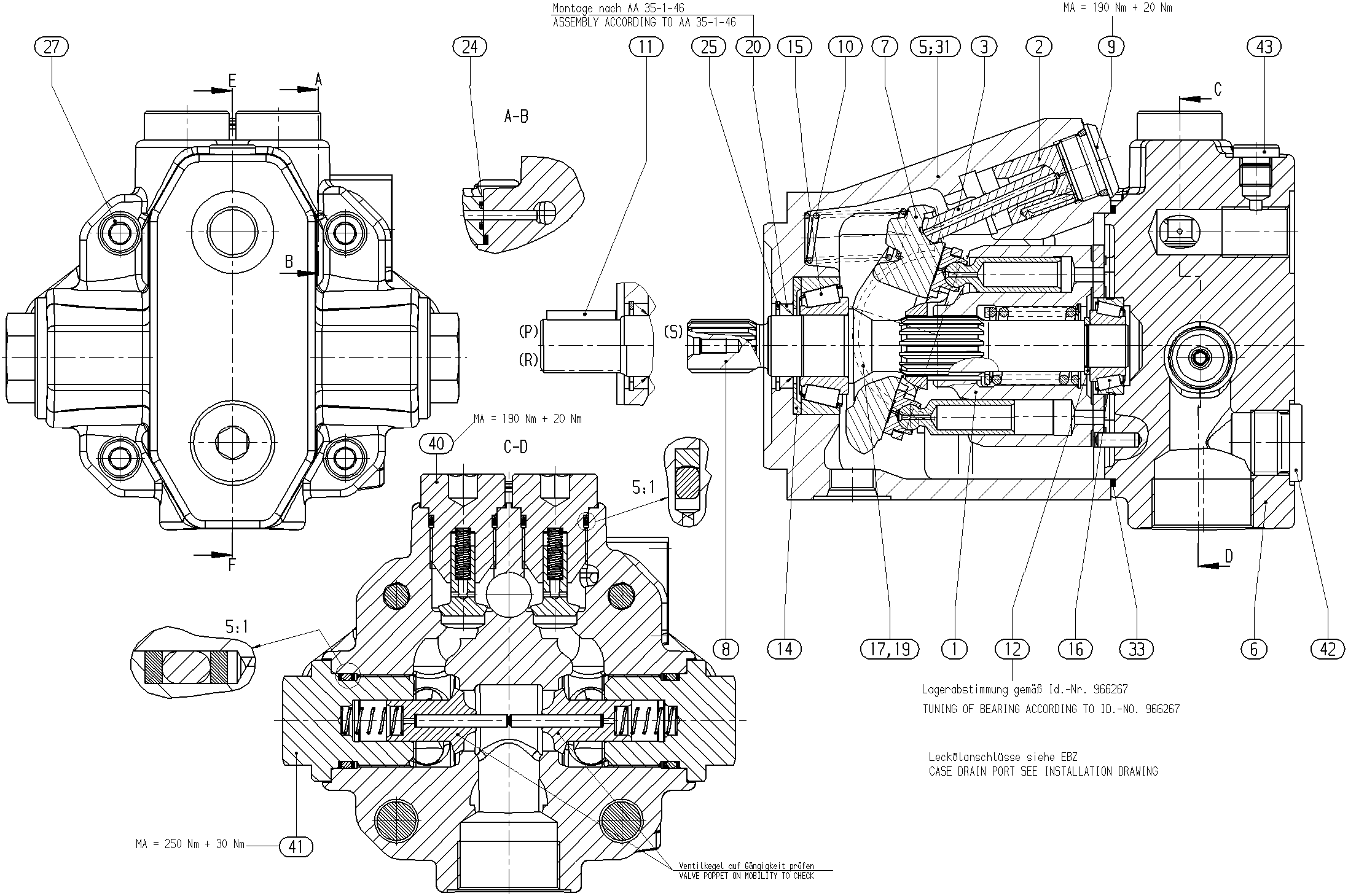

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459787 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R902513212 | PUMP HOUSING | 1 | ||
| R902490904 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| R902447686 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910947314 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902416852 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R909152340 | SHAFT SEALING RINGD | 1 | ||
| 21 | R913052046 | O-RINGD | 1 | |
| R902600311 | R-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| 30 | R909153338 | SCREW PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902402125 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R902459834 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R909153365 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Drive shaft | Splined shaft standard shaft according to ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
