Unit · BASE UNIT
GA10VNO38OV/31L-VSC11N00R902491289
Base unit Bosch Rexroth series A10VNO, type code GA10VNO38OV/31L-VSC11N00, material number R902491289. Nominal size: NG 38. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: higher (S). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00).
- Number
- R902491289
- Type code
- GA10VNO38OV/31L-VSC11N00
- Group
- A10VNO 38
- Edition
- 06/2020

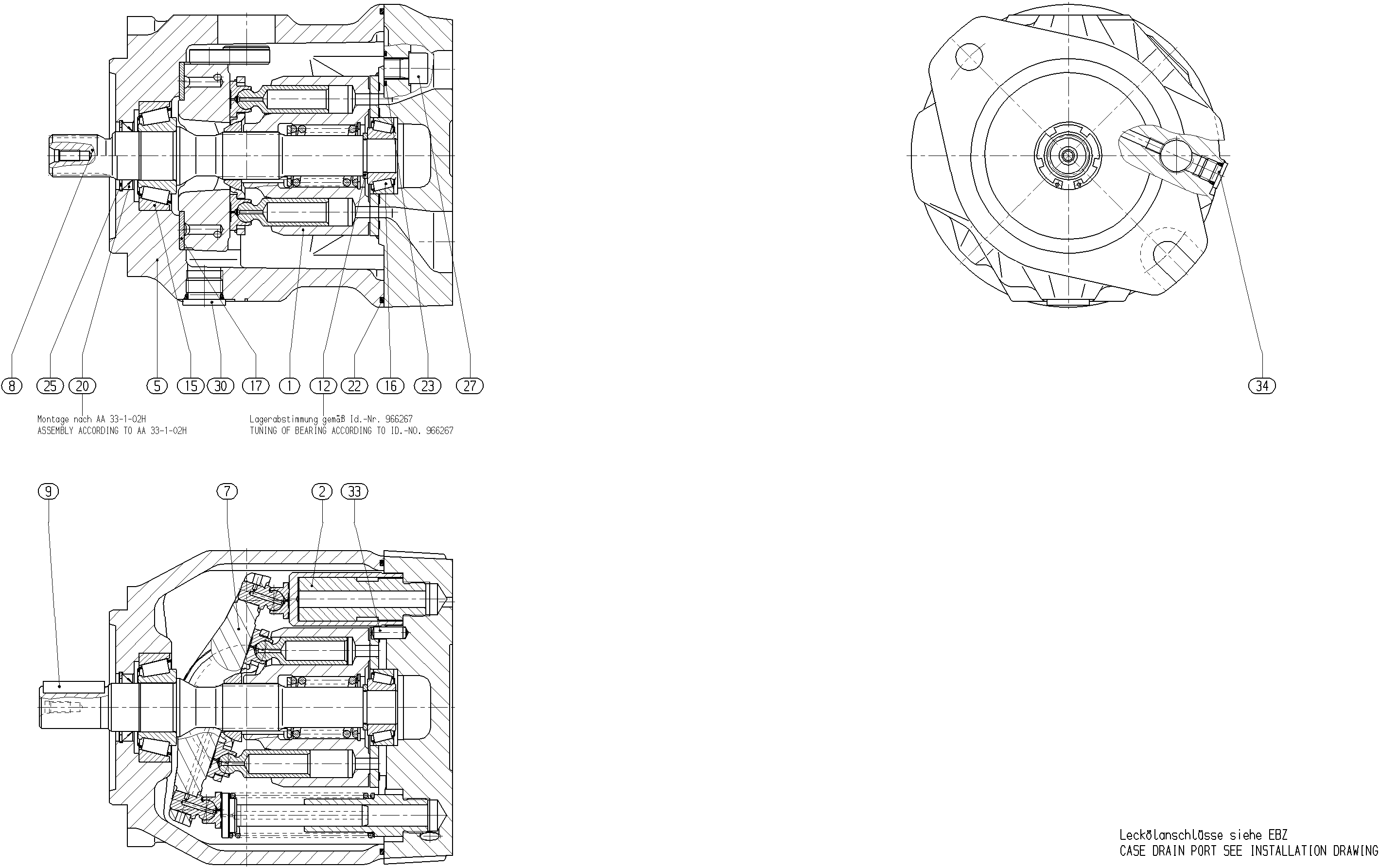

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902491287 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902491288 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902489634 | PUMP HOUSING | 1 | ||
| 6 | R902470627 | CONNECTION PLATE | 1 | |
| R910961003 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| 11 | R910744158 | WASHER | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987890 | STOP RING | 1 | |
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R910241806 | O-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 38 | 38 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | higher | S |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 rear not for through drive | 11 |
| Through drive | Without through drive | N00 |
