Unit · BASE UNIT
G A10V E 63 OV /52W1-VRF66N007F -S3375R902491372
Base unit Bosch Rexroth series A10VM, type code GA10VE63OV/52W1-VRF66N007F-S3375, material number R902491372. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Working port: threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side (66N00). Valves: integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) (7).
- Number
- R902491372
- Type code
- G A10V E 63 OV /52W1-VRF66N007F -S3375
- Group
- A10VE 63
- Edition
- 06/2020

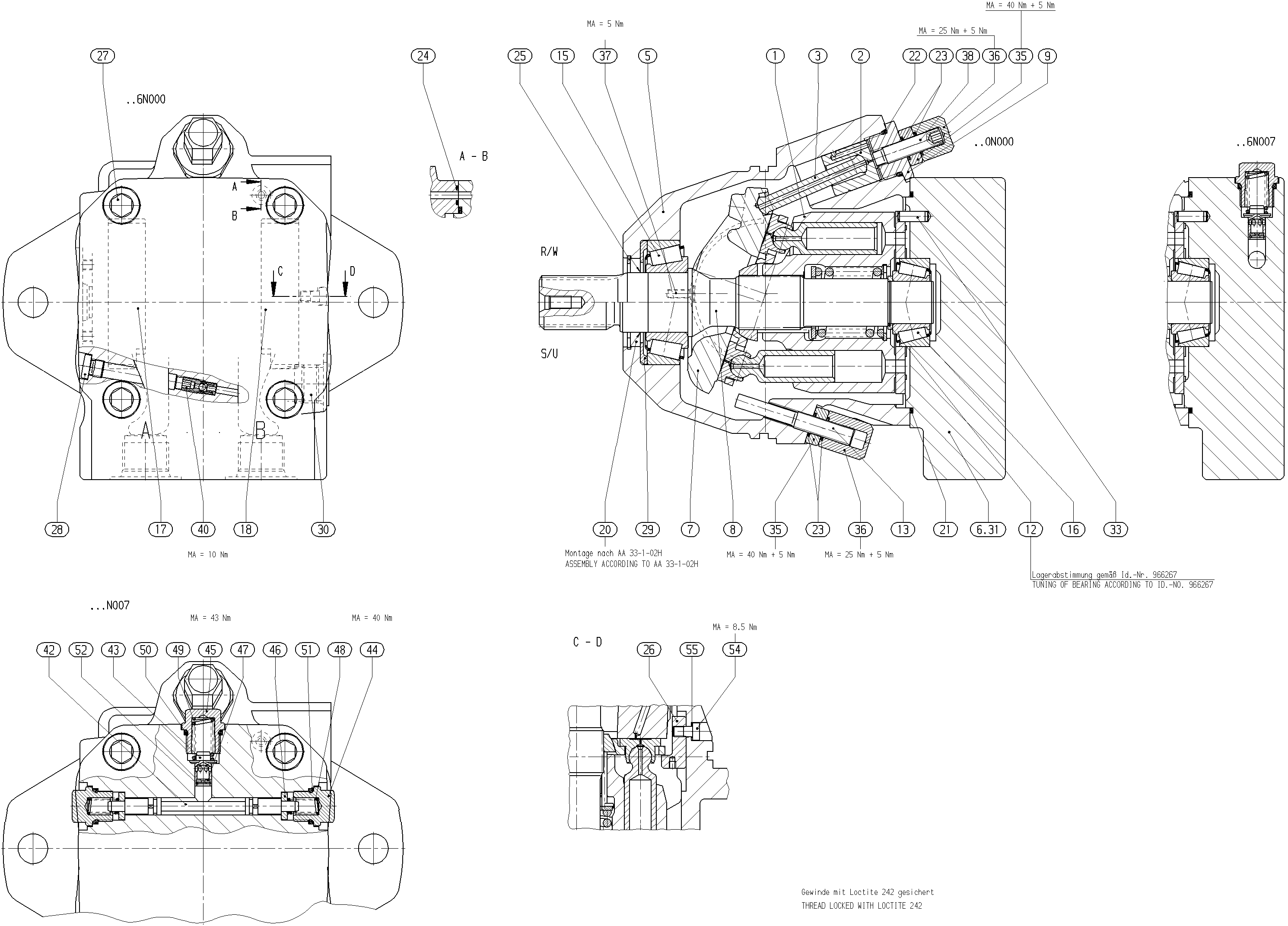

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902512272 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902490714 | MOTOR HOUSING | 1 | ||
| R902428011 | CONNECTION PLATE | 1 | ||
| R910988665 | SWASH PLATE | 1 | ||
| R902422693 | DRIVE SHAFT | 1 | ||
| R902555080 | SCREW PLUG | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RING | 1 | ||
| R910965435 | O-RING | 1 | ||
| R910804886 | O-RINGD | 4 | ||
| R910942133 | R-RING | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910989276 | GUSSET | 2 | ||
| R909831123 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R910989235 | STOP RING | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 2 | ||
| R910961839 | CAP NUT | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902532354 | STOP SCREW | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R910984281 | FLUSHING PISTON | 1 | ||
| R909419422 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902107424 | ORIFICE | 1 | ||
| R902016952 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R910515574 | O-RING | 1 | ||
| R910302139 | O-RING | 2 | ||
| R910800550 | RETAINING RING | 1 | ||
| R902455540 | FITTING SCREW | 2 | ||
| R910107891 | BONDED SEAL RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 63 | 63 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side | 66N00 |
| Valves | Integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) | 7 |
