Unit · AXIAL-PISTON PUMP
A A4VSO 71 EO2 /10R-PPB13KB3R902491516
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO71EO2/10R-PPB13KB3, material number R902491516. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: 100-2 7/8 in 13T 16/32DP A10VSO 28/31 (B3).
- Number
- R902491516
- Type code
- A A4VSO 71 EO2 /10R-PPB13KB3
- Group
- A4VSO 71
- Edition
- 07/2020

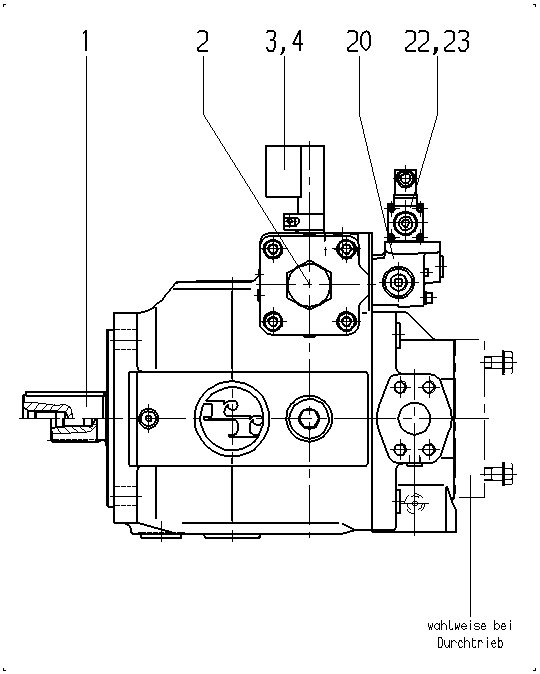

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902423483 | BASE UNIT Assembly parts list →L | 1 | ||
| R910971724 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901151 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910941006 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910988140 | VALVE MODULE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | 100-2 7/8 in 13T 16/32DP A10VSO 28/31 | B3 |
