Unit · CONTROL
V A4VSG 355 HD1G /30L-PR902491871
Control Bosch Rexroth series A4VSO, type code VA4VSG355HD1G/30L-P, material number R902491871. Nominal size: NG 355. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902491871
- Type code
- V A4VSG 355 HD1G /30L-P
- Group
- A4VSG 355
- Edition
- 05/2020

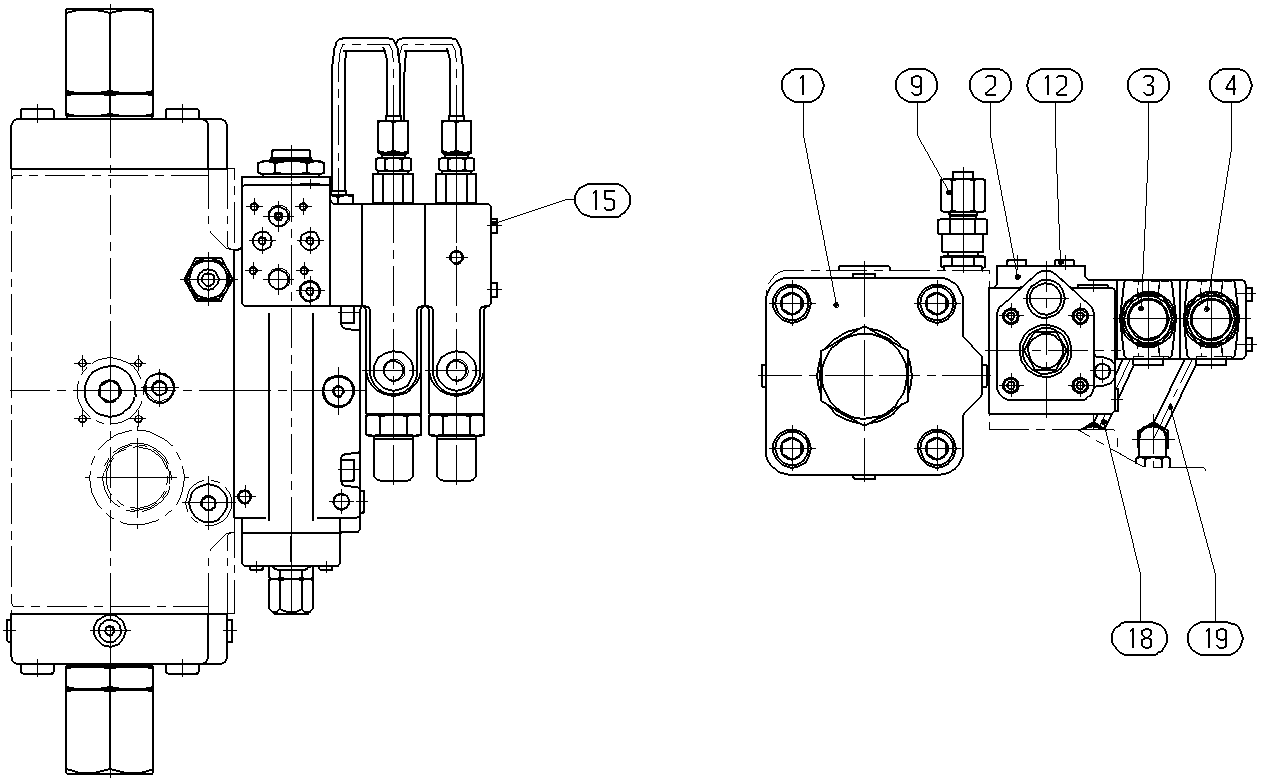

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986886 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910989473 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989519 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989312 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910962346 | CHECK VALVE | 1 | ||
| R909154024 | SCREW PLUG | 2 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910998506 | PIPING Assembly parts list →L | 1 | ||
| R902401856 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 355 | 355 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Series | Series 3, index 0 | 30 |
