Unit · AXIAL-PISTON PUMP

A A10VSO140LA7S /32R-VPB12N00ER902493514

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140LA7S/32R-VPB12N00E, material number R902493514. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, top, bottom, opposite metric. (12). Through drive: without through drive (N00). Rotary group version: standard rotary group noise-optimized for n= 1500/1800 rpm (E).

Number
R902493514
Type code
A A10VSO140LA7S /32R-VPB12N00E
Group
A10VSO 140
Edition
06/2020

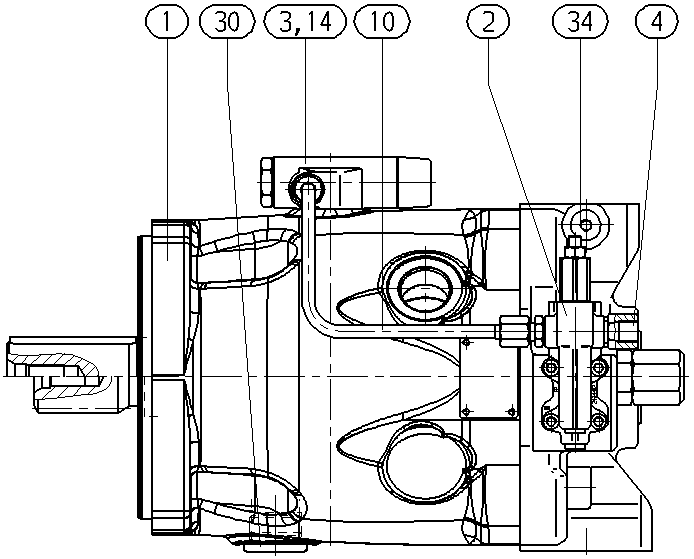

A A10VSO140LA7S /32R-VPB12N00E — Drawing
Pos.NumberNameQtyAdd to inquiry
R902459846BASE UNIT Assembly parts list →L1
R902533492CONTROL VALVE Assembly parts list →L1
R902533220CONTROL VALVE Assembly parts list →L1
R902409426ADAPTER Assembly parts list →L1
R902460050PIPING Assembly parts list →L1
R910764647SCREW PLUG1
R909156652SCREW PLUG1
R913011609SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)140140
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885, limited suitability for through driveP
Mounting flangeISO 3019-2; 4-holeB
PortSAE flange ports fastening thread, top, bottom, opposite metric.12
Through drivewithout through driveN00
Rotary group versionStandard rotary group noise-optimized for n= 1500/1800 rpmE
