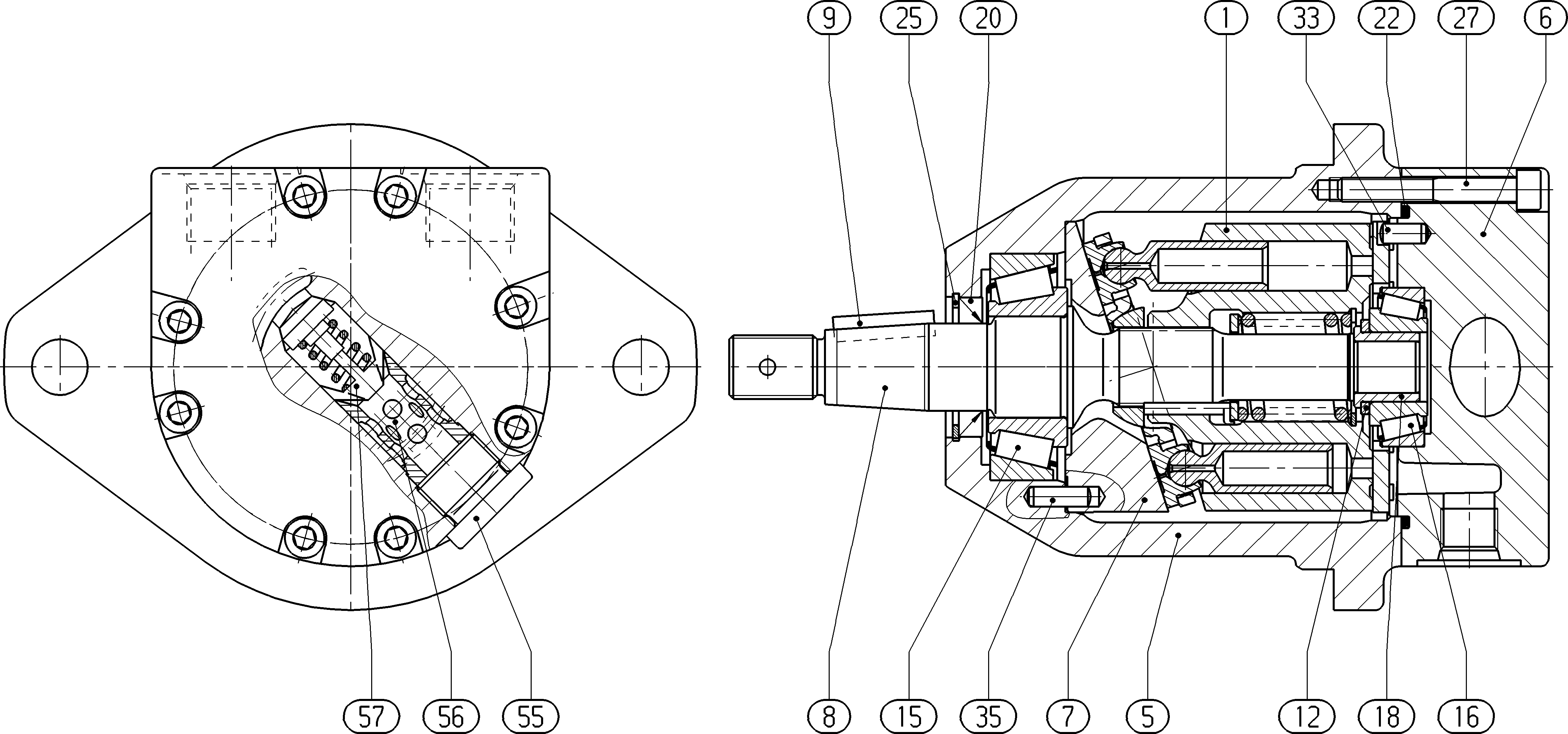

Unit · AXIAL-PISTON MOTOR
AL A10F E 11 /52R-VCC16N002R902493541
Axial piston motor Bosch Rexroth series A10FM, type code ALA10FE11/52R-VCC16N002, material number R902493541. Nominal size: NG 11. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum (A10F). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered shaft with shaft key and threaded bolt (C). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric (16N00). Valves: anti cavitation valve, integrated (2).
- Number
- R902493541
- Type code
- AL A10F E 11 /52R-VCC16N002
- Group
- A10FE 11
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902414695 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902414214 | MOTOR HOUSING | 1 | ||
| R902437564 | CONNECTION PLATE | 1 | ||
| R902437268 | CAM PLATE | 1 | ||
| R902420993 | DRIVE SHAFT | 1 | ||
| R910964231 | PARALLEL KEY | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902414635 | BUSHING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910274135 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910126446 | SOCKET HEAD CAP SCREW | 8 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910757519 | STRAIGHT PIN | 2 | ||
| R909157040 | SCREW PLUG | 1 | ||
| R910996046 | VALVE SLEEVE | 1 | ||
| R910989620 | VALVE INSERT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum | A10F |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 11 | 11 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Tapered shaft with shaft key and threaded bolt | C |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric | 16N00 |
| Valves | Anti cavitation valve, integrated | 2 |
