Unit · AXIAL-PISTON PUMP
A A10C O 45DFR1/52R-VWC12H502D -S4281R902493582

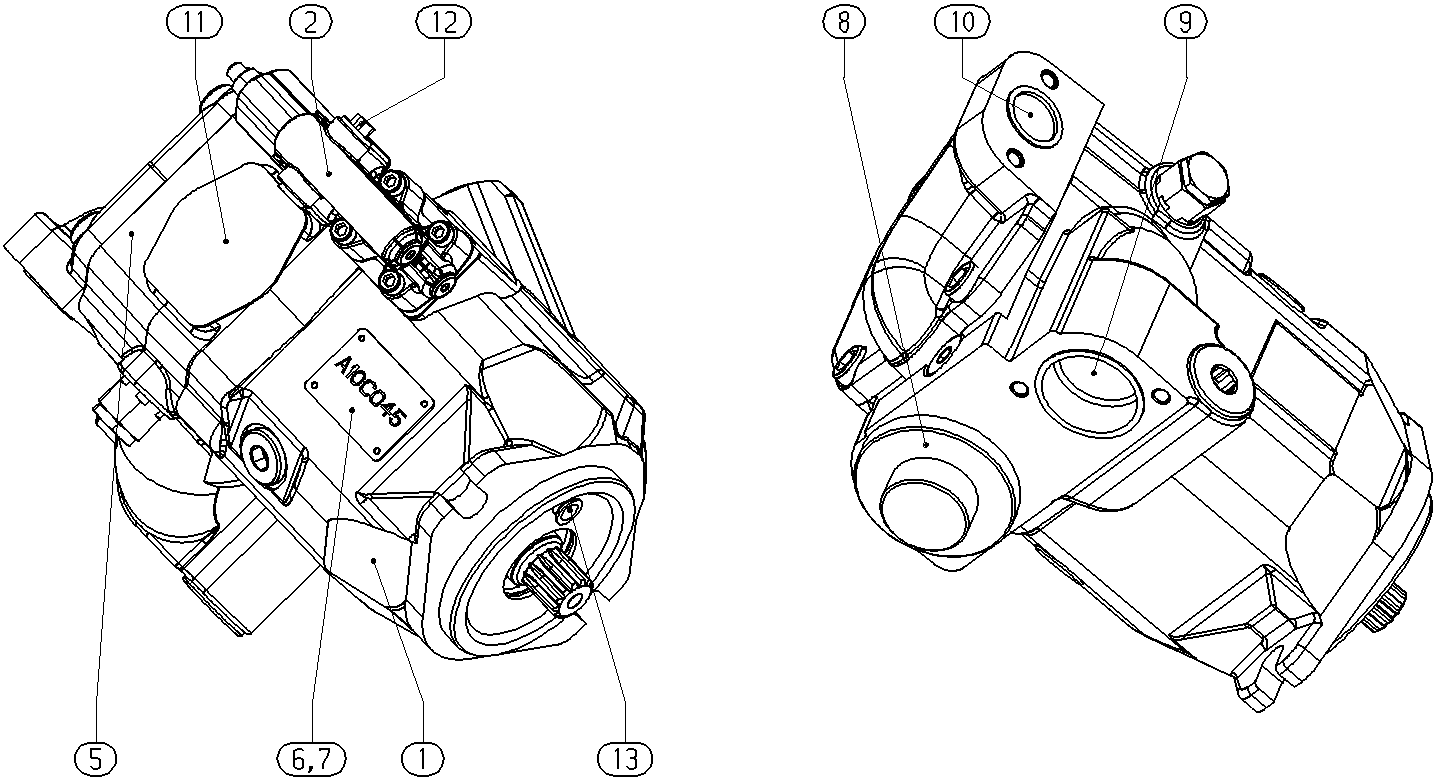

Axial piston pump Bosch Rexroth series A10CO, type code AA10CO45DFR1/52R-VWC12H502D-S4281, material number R902493582.
- Number
- R902493582
- Type code
- A A10C O 45DFR1/52R-VWC12H502D -S4281
- Group
- AXIAL-PISTON PUMP
- Edition
- 09/2019
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902494087 | BASE UNIT Assembly parts list →L | 1 | ||
| R902535458 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902494005 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| 71 | R902431132 | PLUG | 1 | |
| 75 | R909087119 | GUARD PLUG | 1 | |
| 77 | R902407258 | COVER | 1 |
