Unit · CONNECTION PLATE

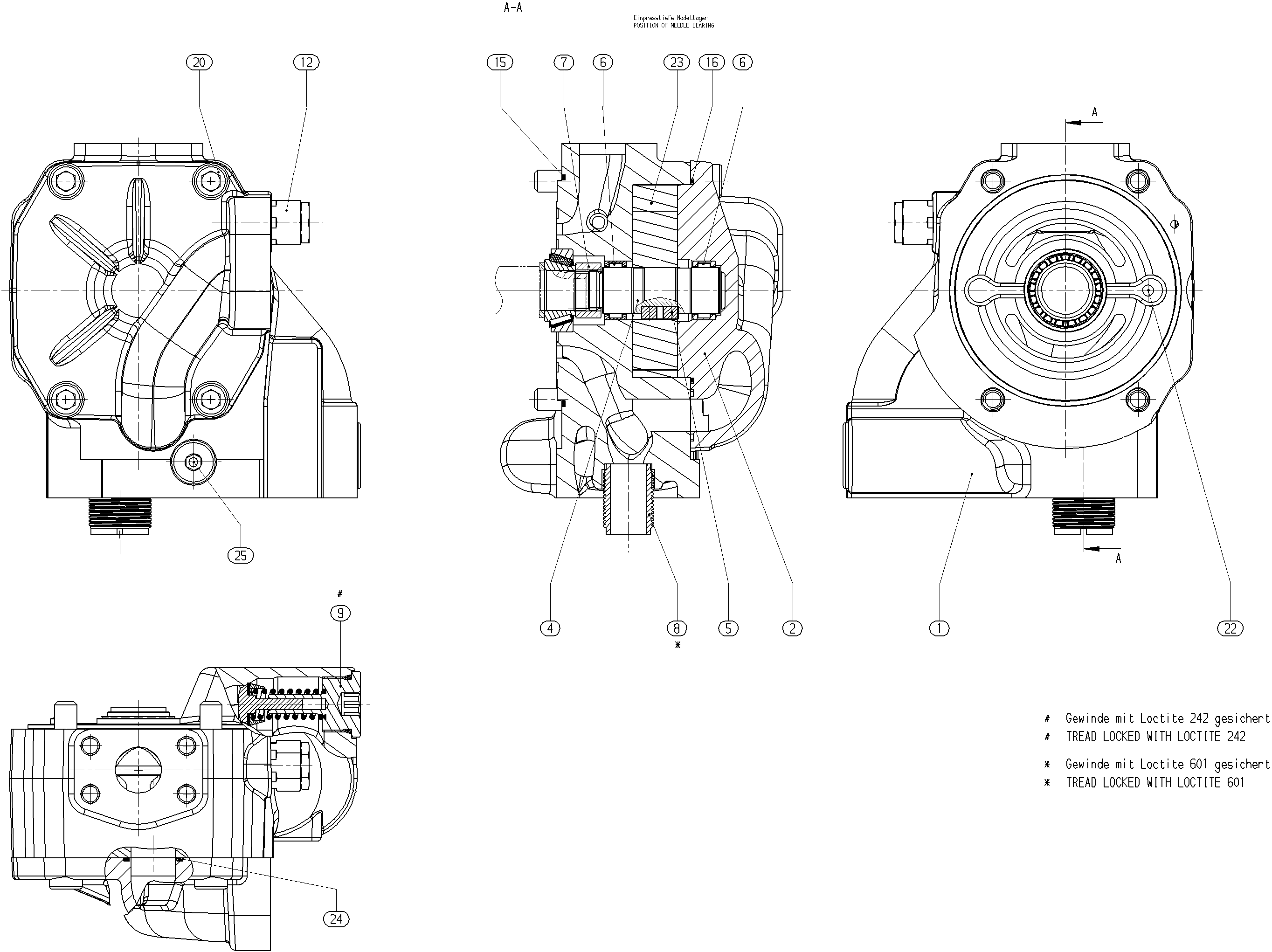

CONNECTION PLATE A10CO45/52R-VXX12H50&R902494005
Connection plate Bosch Rexroth series A10CO, type code CONNECTIONPLATEA10CO45/52R-VXX12H50&, material number R902494005.
- Number
- R902494005
- Type code
- CONNECTION PLATE A10CO45/52R-VXX12H50&
- Group
- CONNECTION PLATE
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902460615 | CONNECTION PLATE | 1 | ||
| R902471608 | COVER | 1 | ||
| R902494093 | GEROTOR SHAFT | 1 | ||
| R910103403 | PARALLEL KEY | 1 | ||
| R910989433 | NEEDLE BUSH | 2 | ||
| R902404689 | COUPLING HUB | 1 | ||
| R902412574 | NECK | 1 | ||
| R902454731 | CHECK VALVE | 1 | ||
| R931002586 | SCREW-IN CARTRIDGE VALVE | 1 | ||
| R913052048 | O-RING | 1 | ||
| R902600578 | O-RING | 1 | ||
| R910989431 | SOCKET HEAD CAP SCREW | 4 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902650836 | WHEEL SET | 1 | ||
| R910470317 | O-RING | 1 | ||
| R902601709 | SCREW PLUG | 1 |
