Unit · AXIAL-PISTON PUMP
A A10V O 85 DRS /53R-VSD12K24 -S2270R902494129
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85DRS/53R-VSD12K24-S2270, material number R902494129. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 127-2 (C) 1 1/2 in 17T 12/24DP (K24). Special version no. 2270.
- Number
- R902494129
- Type code
- A A10V O 85 DRS /53R-VSD12K24 -S2270
- Group
- A10VO 85
- Edition
- 06/2020

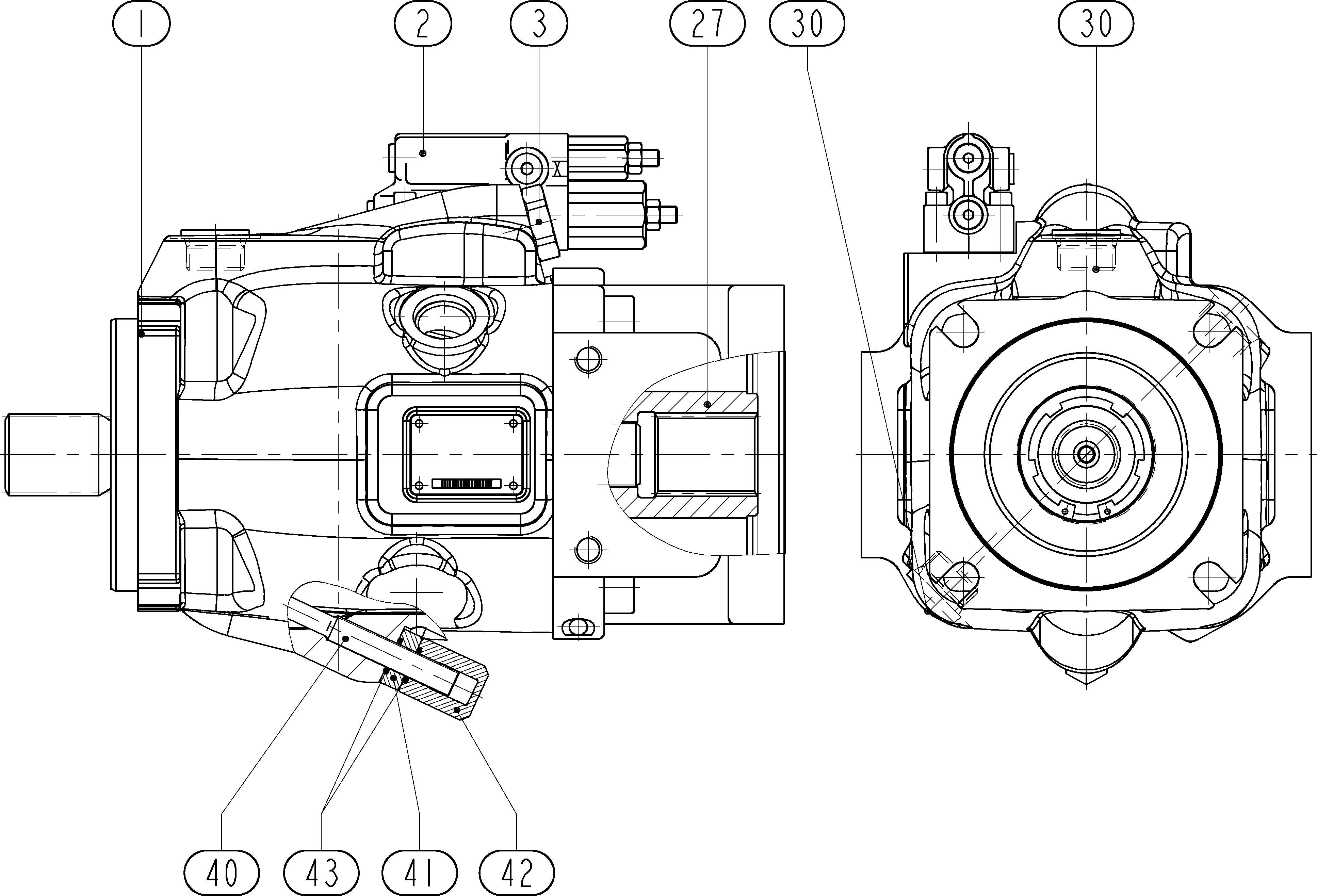

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902494131 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451608 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902452824 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910943565 | SPLINED COUPLING | 1 | ||
| R910967351 | SCREW PLUG | 2 | ||
| R902410509 | STOP SCREW | 1 | ||
| R910903390 | NUT | 1 | ||
| R910989878 | CAP NUT | 1 | ||
| R910919314 | O-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 127-2 (C) 1 1/2 in 17T 12/24DP | K24 |
