Unit · AXIAL-PISTON PUMP
AH A4VSO 500 LR3DN /30L-VZH25K99 -S1119R902494195
Axial piston pump Bosch Rexroth series A4VSO, type code AHA4VSO500LR3DN/30L-VZH25K99-S1119, material number R902494195. Hydraulic fluid/version: high-speed version (H). Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Counter-clockwise (L). Drive shafts: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 (metric) 8-hole (H). Working port: SAE flange ports, B and S with 90° lateral 2nd pressure port B metric fastening thread offset opposite B, plugged with flange plate on delivery (25). Special version no. 1119.
- Number
- R902494195
- Type code
- AH A4VSO 500 LR3DN /30L-VZH25K99 -S1119
- Group
- A4VSO 500
- Edition
- 07/2020

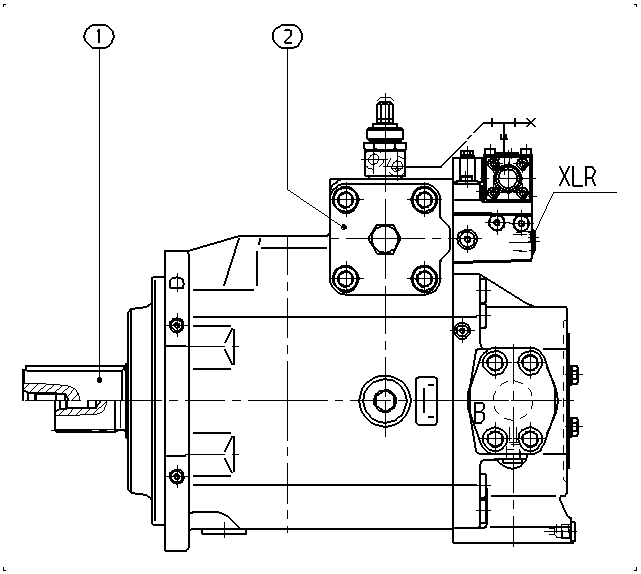

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902485960 | BASE UNIT Assembly parts list →L | 1 | ||
| R910985168 | REGULATOR Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 1 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 63 | R902564147 | SHIPPING PROTECTION | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 | |
| 82 | R902602008 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid/version | High-speed version | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shafts | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 (metric) 8-hole | H |
| Working port | SAE flange ports, B and S with 90° lateral 2nd pressure port B metric fastening thread offset opposite B, plugged with flange plate on delivery | 25 |
