Unit · CONTROL
V A7V O 250 DR /63R-P02VR902494261
Control Bosch Rexroth series A7VO, type code VA7VO250DR/63R-P02V, material number R902494261. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: pressure controller (DR). Direction of rotation: viewed on drive shaft (R). Drive shaft: parallel keyed shaft according to DIN 6885 (P). Port plate for working lines: SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric (02).
- Number
- R902494261
- Type code
- V A7V O 250 DR /63R-P02V
- Group
- A7VO 250
- Edition
- 06/2020

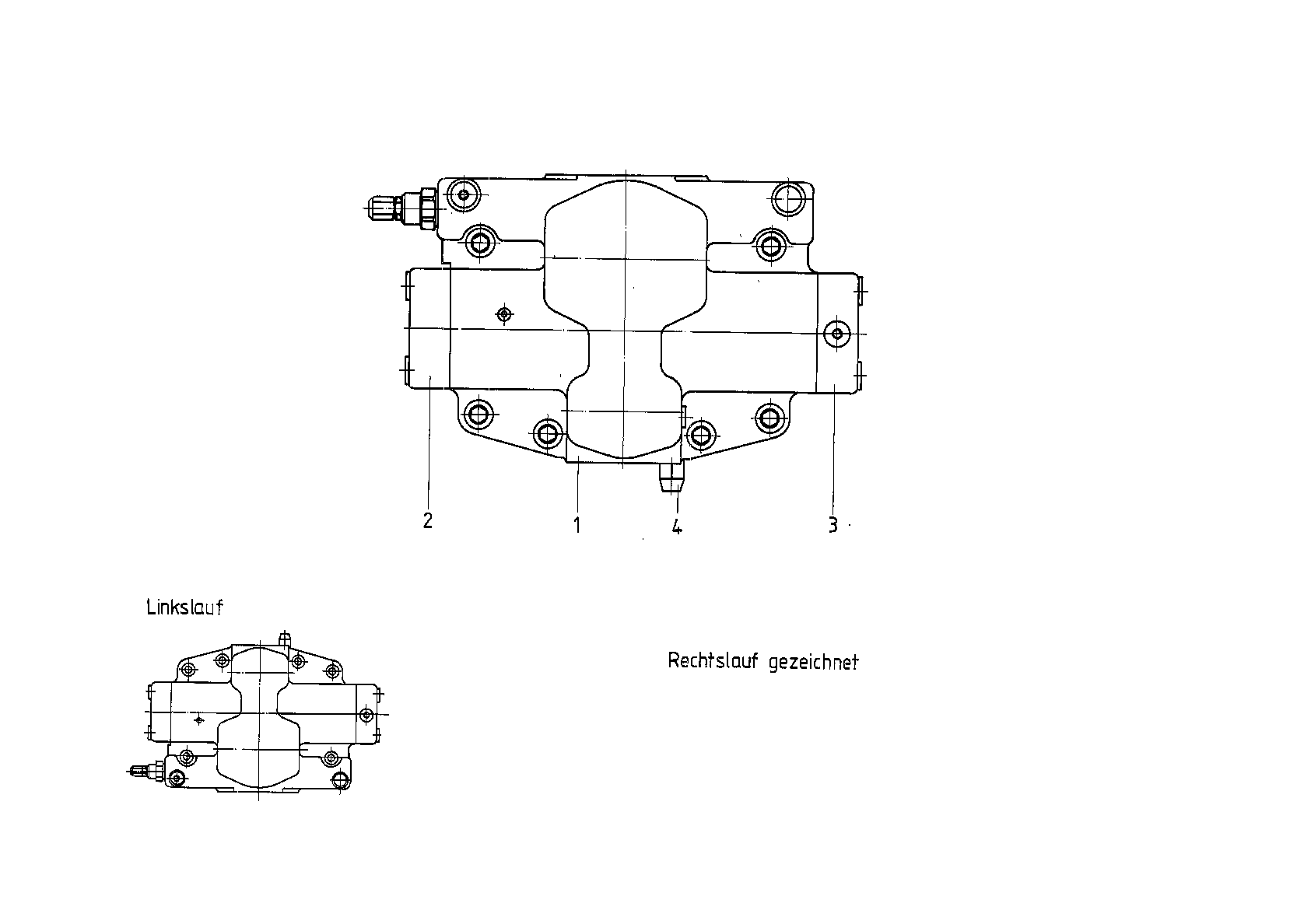

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902494262 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910932869 | COVER Assembly parts list →L | 1 | |
| 3 | R910932872 | COVER Assembly parts list →L | 1 | |
| 4 | R902494263 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Control device | Pressure controller | DR |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | R |
| Drive shaft | Parallel keyed shaft according to DIN 6885 | P |
| Port plate for working lines | SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric | 02 |
