Unit · BASE UNIT
G A10VSO 71 OV /32R-CPB22U00R902496184
Base unit Bosch Rexroth series A10VSO, type code GA10VSO71OV/32R-CPB22U00, material number R902496184. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (C). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping (22). Through drive: only for port plate 22 and 32, without through drive (U00).
- Number
- R902496184
- Type code
- G A10VSO 71 OV /32R-CPB22U00
- Group
- A10VSO 71
- Edition
- 06/2020

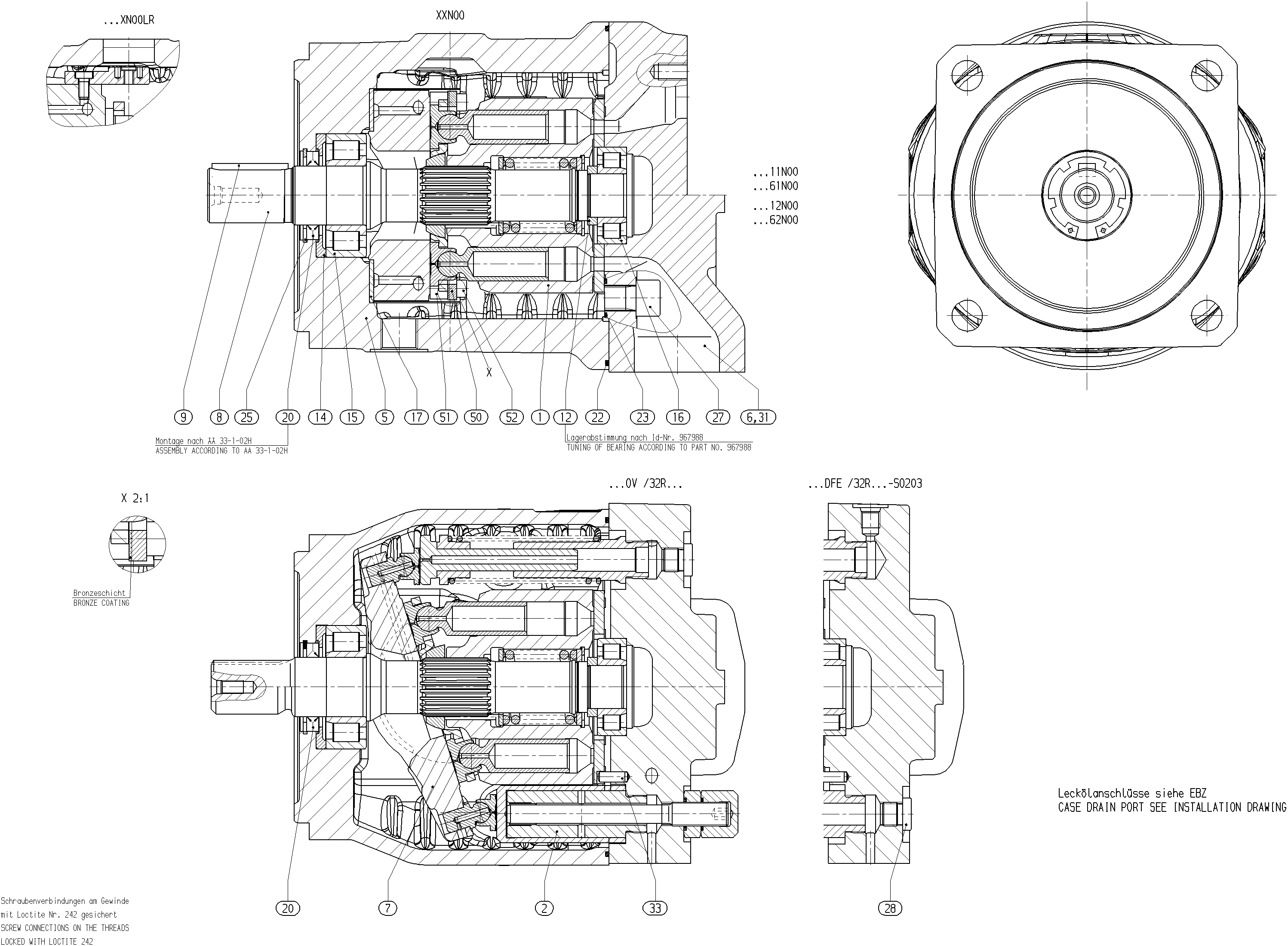

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454149 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902443447 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902448509 | PUMP HOUSING | 1 | ||
| R902496185 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902454600 | SWASH PLATE | 1 | ||
| R902453506 | DRIVE SHAFT | 1 | ||
| R910902888 | PARALLEL KEY | 1 | ||
| R902439613 | ADJUSTMENT SHIM | 1 | ||
| R902468979 | STOP RING | 1 | ||
| R910729949 | CYL. ROLLER BEARING | 1 | ||
| R910729922 | CYL. ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910916105 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910720194 | O-RINGD | 1 | ||
| R913052118 | R-RINGD | 4 | ||
| 24 | R909086950 | O-RINGD | 1 | |
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 43 | R900002645 | SLOTTED SPRING PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | C |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping | 22 |
| Through drive | Only for port plate 22 and 32, without through drive | U00 |
