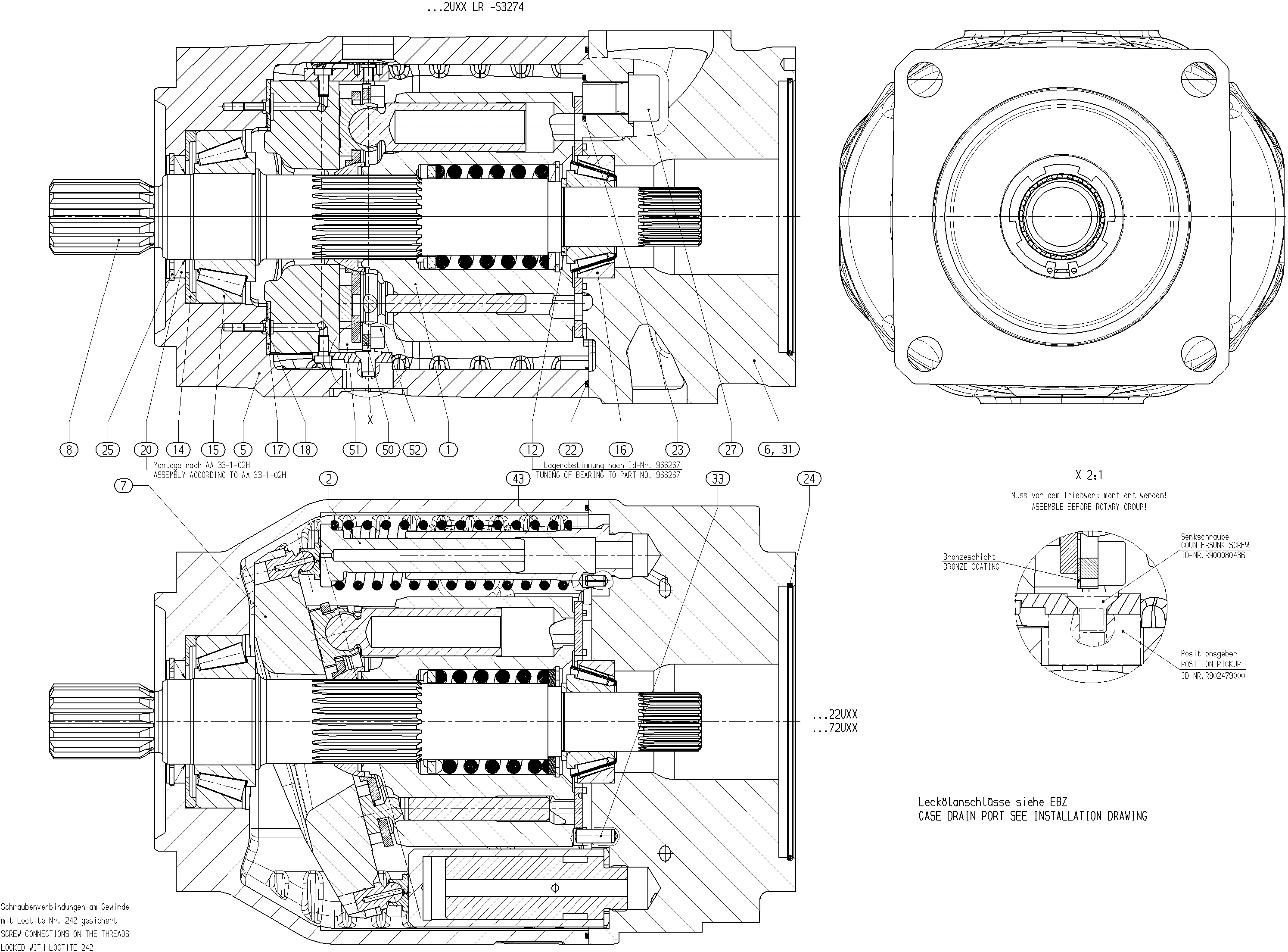

Unit · BASE UNIT
G A10V O180 OV /32R-VSD12N00 -S2662R902496347
Base unit Bosch Rexroth series A10VO, type code GA10VO180OV/32R-VSD12N00-S2662, material number R902496347. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: without through drive (N00). Special version no. 2662.
- Number
- R902496347
- Type code
- G A10V O180 OV /32R-VSD12N00 -S2662
- Group
- A10VO 180
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902449624 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902449650 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902487434 | PUMP HOUSING | 1 | ||
| R902496175 | CONNECTION PLATE | 1 | ||
| R902496348 | SWASH PLATE | 1 | ||
| R902470347 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R902446966 | STOP RING | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R902650949 | TAPERED-ROLLER BEARING | 1 | ||
| R902453958 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R900002645 | SLOTTED SPRING PIN | 1 | ||
| R902570110 | SEGMENT | 2 | ||
| R902493284 | SPACER SLEEVE | 4 | ||
| R902530617 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 180 | 180 |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | Without through drive | N00 |
