Unit · AXIAL-PISTON PUMP
PL A4VSG 125 HD1DT /30L-PZB10K319NR902496967
Axial piston pump Bosch Rexroth series A4VSG, type code PLA4VSG125HD1DT/30L-PZB10K319N, material number R902496967. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through drives (for mounting options and dimensions: 125, 4-hole 32x22x14x9g (K31). Filtration: without filter (N).
- Number
- R902496967
- Type code
- PL A4VSG 125 HD1DT /30L-PZB10K319N
- Group
- A4VSG 125
- Edition
- 06/2020

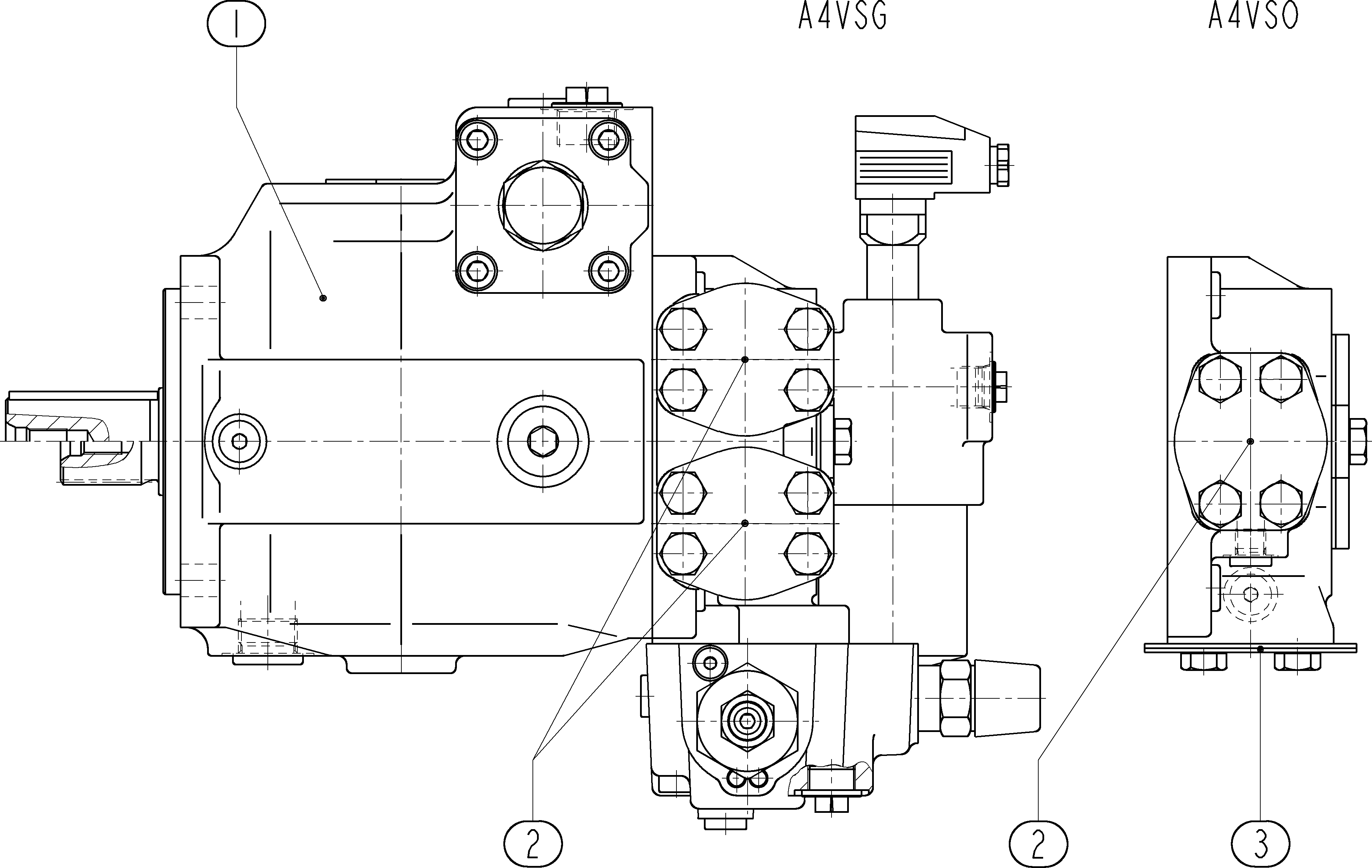

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902496968 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through drives (for mounting options and dimensions | 125, 4-hole 32x22x14x9g | K31 |
| Filtration | Without filter | N |
