Unit · AXIAL-PISTON PUMP
P A4VSG 500 HD1DT /30L-PPH10KB69FR902497879
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500HD1DT/30L-PPH10KB69F, material number R902497879. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 125, 2-hole 1 1/2 in 17T 12/24DP (KB6). Valves: SDVB valve block mounted (9). Filtration: filter mounted in the boost circuit (F).
- Number
- R902497879
- Type code
- P A4VSG 500 HD1DT /30L-PPH10KB69F
- Group
- A4VSG 500
- Edition
- 07/2020

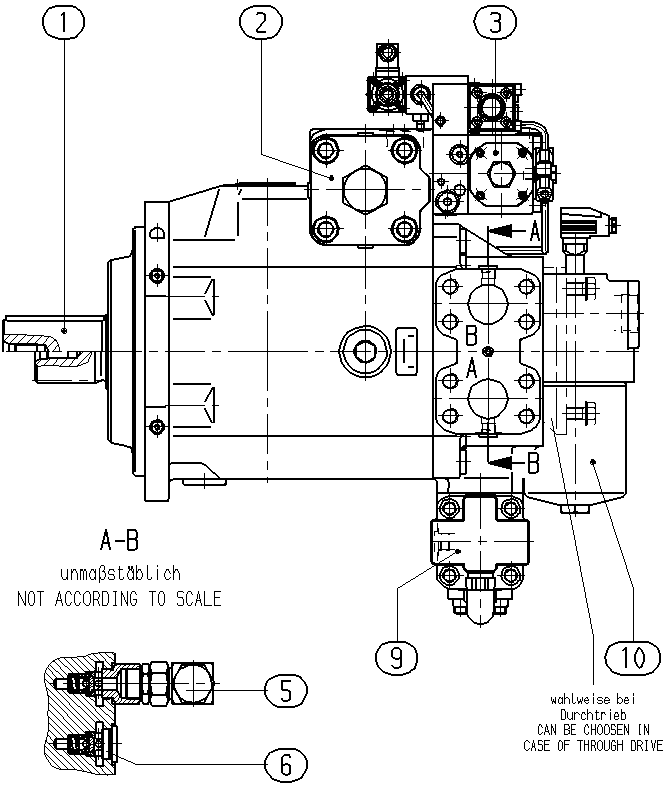

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902510243 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451942 | CONTROL Assembly parts list →L | 1 | ||
| R910924418 | SPRING PACK Assembly parts list →L | 1 | ||
| R910969534 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910964795 | FILTER Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R909831383 | GUARD PLUG | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 82 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 125, 2-hole 1 1/2 in 17T 12/24DP | KB6 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Filter mounted in the boost circuit | F |
