Unit · AXIAL-PISTON PUMP
A AA10VSO140 DR /31R-PKD62K68R902500055
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DR/31R-PKD62K68, material number R902500055. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68).
- Number
- R902500055
- Type code
- A AA10VSO140 DR /31R-PKD62K68
- Group
- A10VSO 140
- Edition
- 06/2020

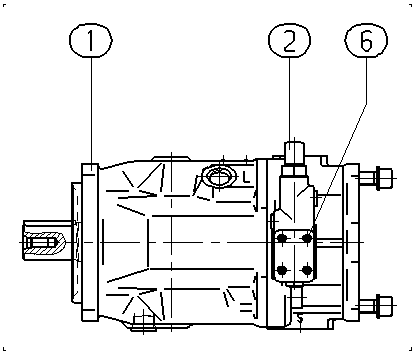

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910939914 | BASE UNIT Assembly parts list →L | 1 | ||
| R910922790 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
