Unit · AXIAL-PISTON MOTOR
ALA10VE45DG/52W1-VRF66N000-S1102R902500067
Axial piston motor Bosch Rexroth series A10VM, type code ALA10VE45DG/52W1-VRF66N000-S1102, material number R902500067. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Control devices: two-point control direct operated, external control pressure supply without on/off valve (DG). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Working port: threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side (66N00). Valves: without valve (0). Special version no. 1102.
- Number
- R902500067
- Type code
- ALA10VE45DG/52W1-VRF66N000-S1102
- Group
- A10VE 45
- Edition
- 07/2020

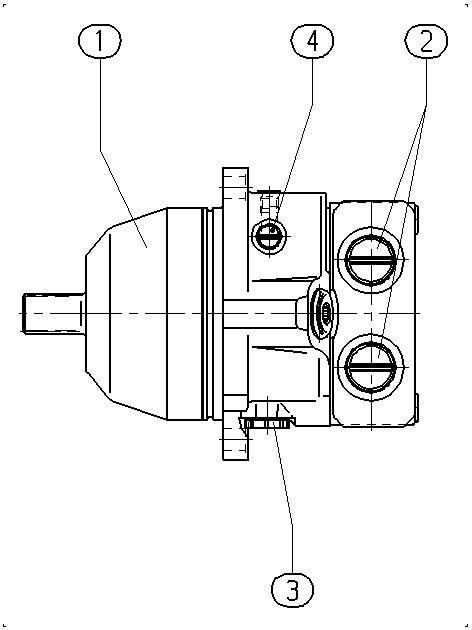

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405678 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603191 | SEAL SCREW | 2 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902602014 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control direct operated, external control pressure supply without on/off valve | DG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side | 66N00 |
| Valves | Without valve | 0 |
Other versions 14
- R902500190 A A10V E 45 DG /52W1-VRF66N000
- R902410768 A A10V E 45 DG /52W1-VRF66N000 -S1206
- R902505781 A A10V E 45 DG /52W1-VRF66N000 -S1206
- R902424509 A A10V E 45 DG /52W1-VRF66N000 -S1442
- R902438285 A A10V E 45 DG /52W1-VRF66N000 -S1897
- R902405678 AA10VE45DG/52W1-VRF66N000-S1102
- R902500188 AL A10V E 45 DG /52W1-VRF66N000
- R902481046 AL A10V E 45 DG /52W1-VRF66N000 -S1442
- R902484337 AL A10V E 45 DG /52W1-VRF66N000 -S1442
- R902409040 GA10VE45DG/52W1-VRF66N000
- R902405605 GA10VE45DG/52W1-VRF66N000-S1102
- R902410770 GA10VE45DG/52W1-VRF66N000-S1206
- R902424640 GA10VE45DG/52W1-VRF66N000-S1442
- R902568169 GA10VE45DG/52W1-VRF66N000-S5348
