Unit · AXIAL-PISTON PUMP
AAA10VSO140DFR1/31R-PKD62N00-SO355R902500079
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DFR1/31R-PKD62N00-SO355, material number R902500079. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 355.
- Number
- R902500079
- Type code
- AAA10VSO140DFR1/31R-PKD62N00-SO355
- Group
- A10VSO 140
- Edition
- 06/2020

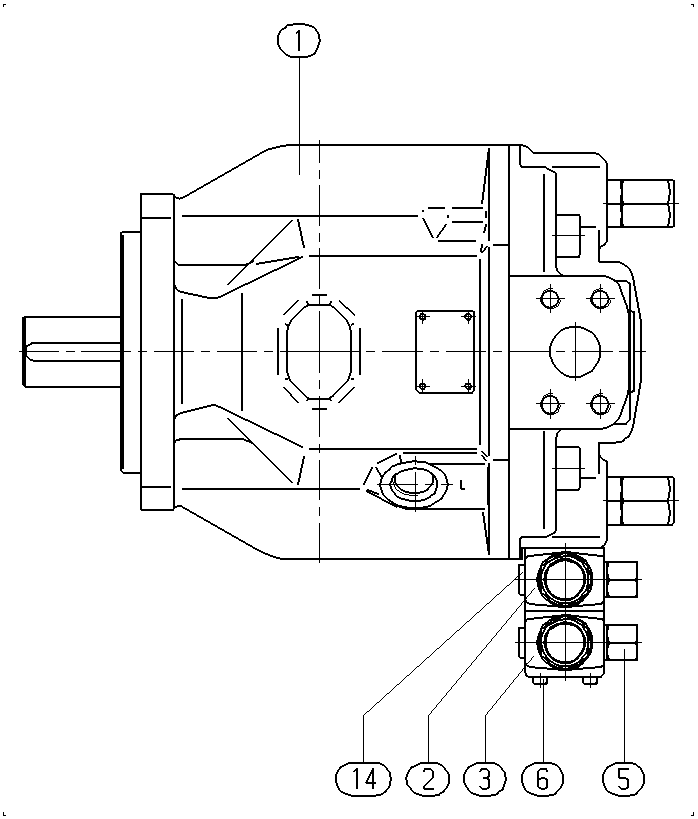

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910921499 | BASE UNIT Assembly parts list →L | 1 | ||
| R910962672 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920244 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910984004 | ADAPTER Assembly parts list →L | 2 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
