Unit · AXIAL-PISTON PUMP
A AA10VSO 71 FEO /31L-PKC92K08R902500144
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO71FEO/31L-PKC92K08, material number R902500144. Nominal size: NG 71. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92).
- Number
- R902500144
- Type code
- A AA10VSO 71 FEO /31L-PKC92K08
- Group
- A10VSO 71
- Edition
- 06/2020

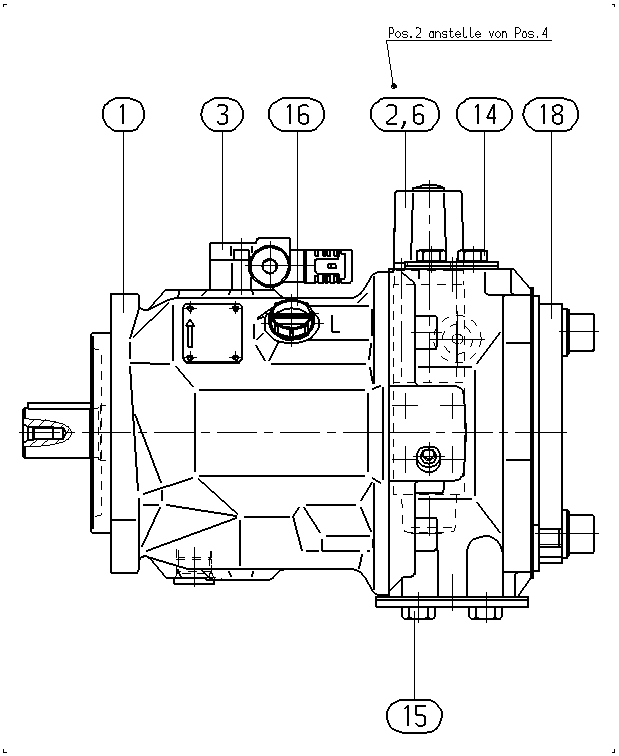

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902408541 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| 4 | R902449557 | FLANGE COVER | 1 | |
| R910110159 | SOCKET HEAD CAP SCREW | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400591 | FLANGE COVER | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902602979 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
