Unit · AXIAL-PISTON PUMP
A A10V O 28 DR1 /52L-PSC64N00R902500194
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DR1/52L-PSC64N00, material number R902500194. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00).
- Number
- R902500194
- Type code
- A A10V O 28 DR1 /52L-PSC64N00
- Group
- A10VO 28
- Edition
- 06/2020

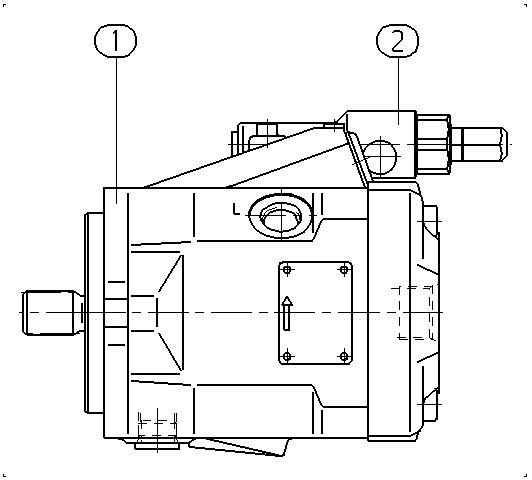

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459418 | BASE UNIT Assembly parts list →L | 1 | ||
| R902473321 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | Threaded port, UNC rear not for through drive | 64 |
| Through drive | Without through drive | N00 |
