Unit · AXIAL-PISTON MOTOR

AL A10V M 28 DG /52W1-VRC64N000R902500236

Axial piston motor Bosch Rexroth series A10VM, type code ALA10VM28DG/52W1-VRC64N000, material number R902500236. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control direct operated, external control pressure supply without on/off valve (DG). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Valves: without valve (0).

Number: R902500236
Type code: AL A10V M 28 DG /52W1-VRC64N000
Group: A10VM 28
Edition: 06/2020

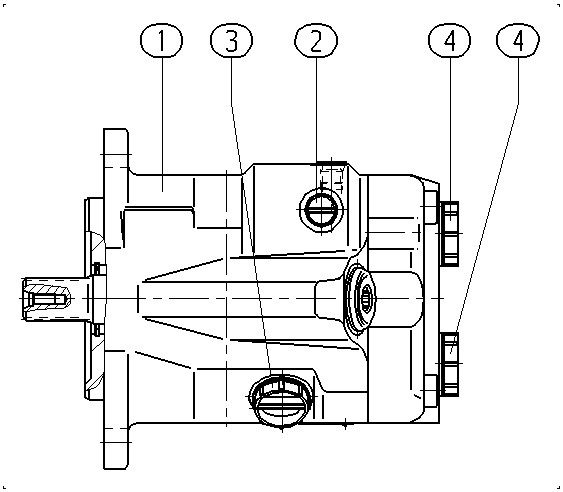

AL A10V M 28 DG /52W1-VRC64N000 — Drawing

Number	Name	Qty
R902411878	AXIAL-PISTON MOTOR Assembly parts list →L	1
R902602014	SEAL SCREW	1
R902602016	SEAL SCREW	1
R902603191	SEAL SCREW	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10V
Operating mode	Motor, open and closed circuit	M
Size (NG)	28	28
Control devices	Two-point control direct operated, external control pressure supply without on/off valve	DG
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft bi-directional	W
Minimum displacement	Vg min [cm3] steplessly adjustable from/to	1
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Splined shaft similar to ISO 3019-1 for high torque	R
Mounting flange	Based on ISO 3019-1 (SAE); 2 hole	C
Valves	Without valve	0

Parameters from the type code
