Unit · AXIAL-PISTON PUMP
ALA10VSO18DFR/31R-PKC62N00R902500417
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DFR/31R-PKC62N00, material number R902500417. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R902500417
- Type code
- ALA10VSO18DFR/31R-PKC62N00
- Group
- A10VSO 18
- Edition
- 06/2020

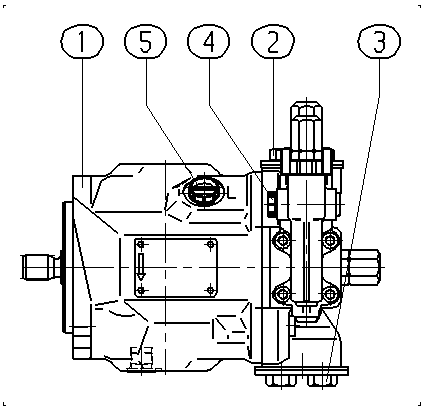

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910946934 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400575 | FLANGE COVER | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902602015 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
